SM6S14AHE3 - 4600 Watt TVS

Download the SM6S14AHE3 datasheet PDF. This datasheet also covers the SM6S10AHE3 variant, as both devices belong to the same 4600 watt tvs family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SM6S10AHE3-MCC.pdf) that lists specifications for multiple related part numbers.

General Description

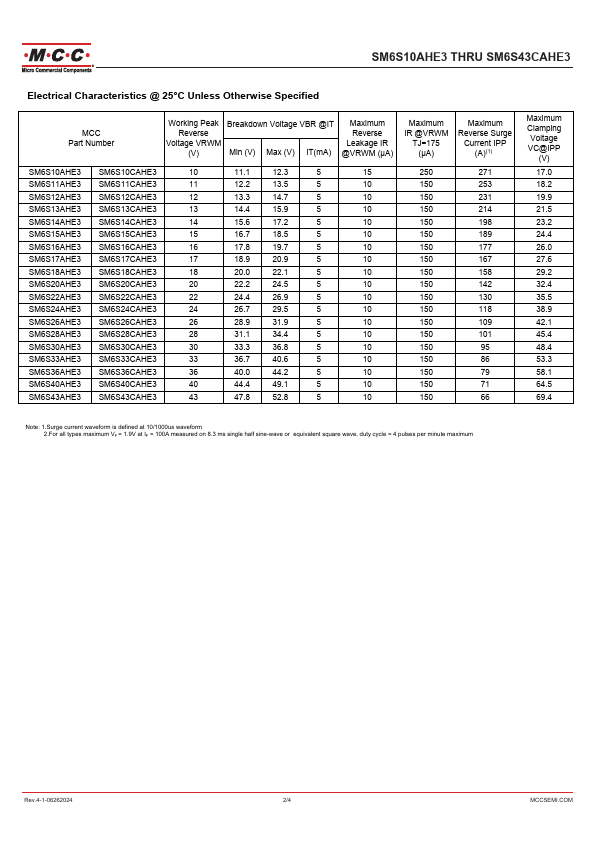

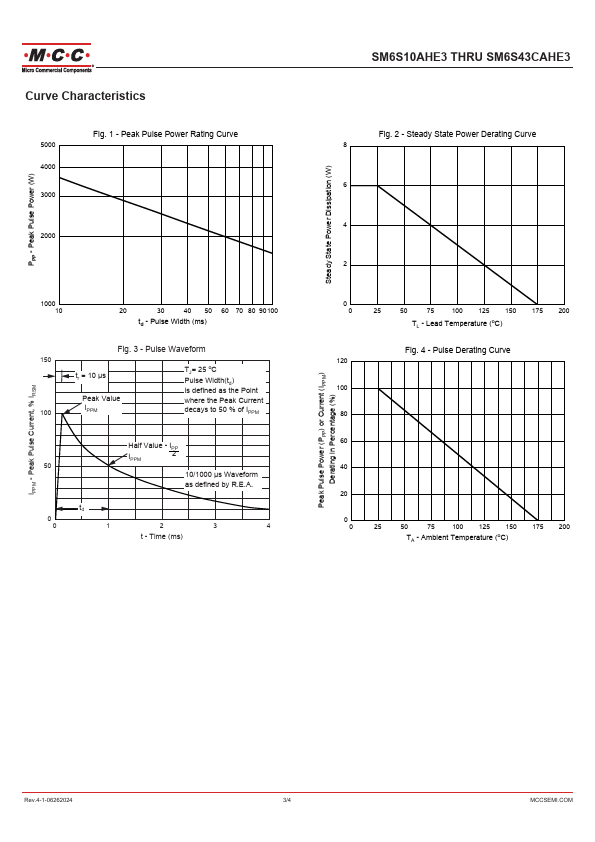

Simplified outline Graphic symbol Uni-directional MCC XXXX YYWW Cathode （1） Anode （2） Bi-directional MCC XXXX YYWW （1） XXXX = Marking code YYWW = Date Code Rev.4-1-06262024 （2） 1/4 DO-218AB A B E D C F G H J LK DIMENSIONS DIM INCHES MM MIN MAX MIN MAX A 0.590 0.630 15.00 16.00 B 0.524 0.539 13.30 13.70 C 0.374 0.413 9.50 10.50 D 0.323 0.339 8.20 8.70 E 0.091 0.114 2.30 3.00 F 0.343 0.366 8.70 9.50 G 0.382 0.406 9.70 10.50 H 0.189 0.205 4.70 5.20 J 0.098 0.138 2.50 3.50 K 0.067 0.106 1.70 2.80 L 0.020 0.028 0.50 0.70 NOTE SUGGESTED SOLDER PAD LAYOUT 3.1mm 2.6mm 10.00mm 2.7mm 9.30mm MCCSEMI.COM SM6S10AHE3 THRU SM6S43CAHE3 Electrical Characteristics @ 25°C Unless Otherwise Specified MCC Part Number Working Peak Breakdown Voltage VBR @IT Reve

Overview

SM6S10AHE3 THRU SM6S43CAHE3.

Key Features

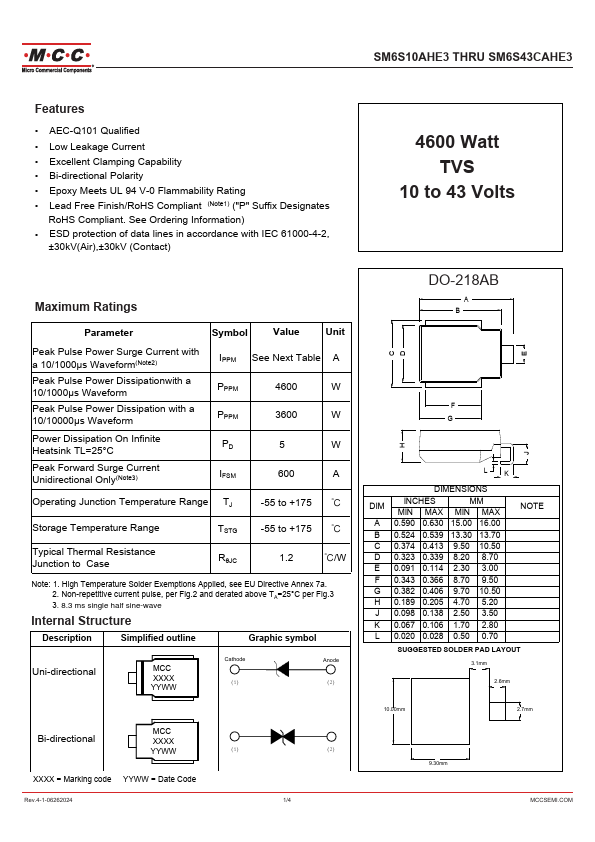

  • AEC-Q101 Qualified.
  • Low Leakage Current.
  • Excellent Clamping Capability.
  • Bi-directional Polarity.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix Designates RoHS Compliant. See Ordering Information).
  • ESD protection of data lines in accordance with IEC 61000-4-2, ±30kV(Air),±30kV (Contact) 4600 Watt TVS 10 to 43 Volts Maximum Ratings Parameter Peak Pulse Power Surge Current with a 10/1.
