SM6S15CAHE3
SM6S15CAHE3 is 4600 Watt TVS manufactured by Micro Commercial Components.
- Part of the SM6S10AHE3 comparator family.
- Part of the SM6S10AHE3 comparator family.

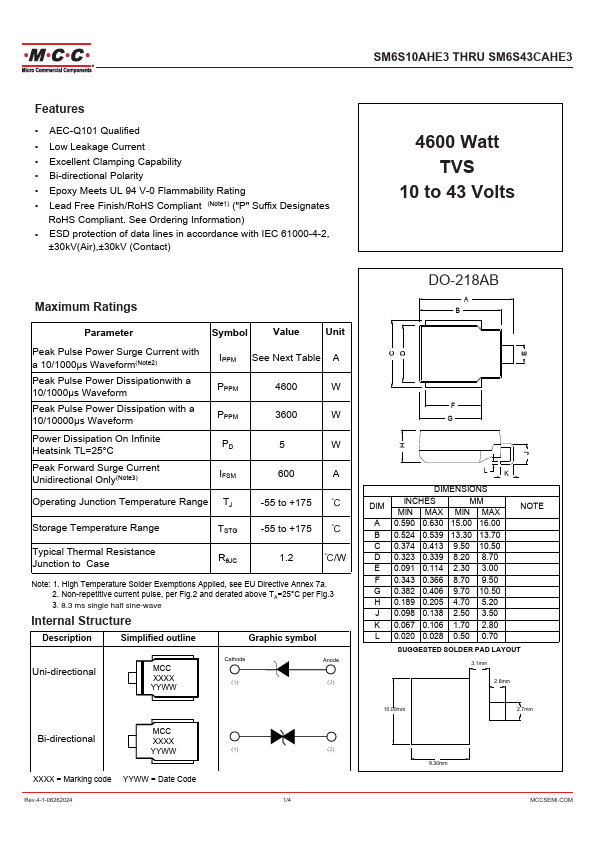

SM6S10AHE3 THRU SM6S43CAHE3
Features
- AEC-Q101 Qualified
- Low Leakage Current
- Excellent Clamping Capability
- Bi-directional Polarity
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/RoHS pliant (Note1) ("P" Suffix Designates
RoHS pliant. See Ordering Information)
- ESD protection of data lines in accordance with IEC 61000-4-2,
±30kV(Air),±30kV (Contact)
4600 Watt TVS
10 to 43 Volts
Maximum Ratings
Parameter
Peak Pulse Power Surge Current with a 10/1000μs Waveform(Note2)
Peak Pulse Power Dissipationwith a 10/1000μs Waveform
Peak Pulse Power Dissipation with a 10/10000μs Waveform
Power Dissipation On Infinite Heatsink TL=25°C
Peak Forward Surge Current...
