SM6S18CAHE3 - 4600 Watt TVS

Download the SM6S18CAHE3 datasheet PDF (SM6S10AHE3 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 4600 watt tvs.

Description

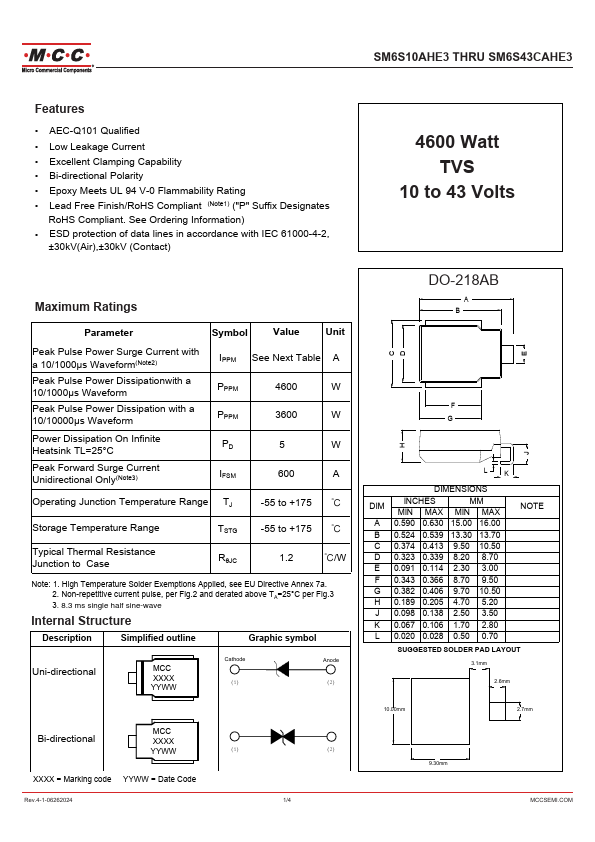

Simplified outline Graphic symbol Uni-directional MCC XXXX YYWW Cathode （1） Anode （2） Bi-directional MCC XXXX YYWW （1） XXXX = Marking code YYWW = Date Code Rev.4-1-06262024 （2） 1/4 DO-218AB A B E D C F G H J LK DIMENSIONS DIM INCHES MM MIN MAX MIN MAX A 0.590 0.630 15.00 1

Features

  • AEC-Q101 Qualified.
  • Low Leakage Current.
  • Excellent Clamping Capability.
  • Bi-directional Polarity.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix Designates RoHS Compliant. See Ordering Information).
  • ESD protection of data lines in accordance with IEC 61000-4-2, ±30kV(Air),±30kV (Contact) 4600 Watt TVS 10 to 43 Volts Maximum Ratings Parameter Peak Pulse Power Surge Current with a 10/1.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SM6S10AHE3-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • SM6S18CA - 4600W Transient Voltage Suppressor (JIEJIE)
  • SM6S18CA - 4600W Transient Voltage Suppressor (HUAAN)
  • SM6S18A - 4600W Transient Voltage Suppressor (JIEJIE)
  • SM6S18A - 4600W Transient Voltage Suppressor (HUAAN)
  • SM6S18A - TVS (Vishay)
  • SM6S18AT - Transient Voltage Suppressors (Vishay)
  • SM6S10A - 4600W Transient Voltage Suppressor (JIEJIE)
  • SM6S10A - 4600W Transient Voltage Suppressor (HUAAN)
  • SM6S10A - TVS (Vishay)
  • SM6S10AT - Transient Voltage Suppressors (Vishay)
Other Datasheets by MCC

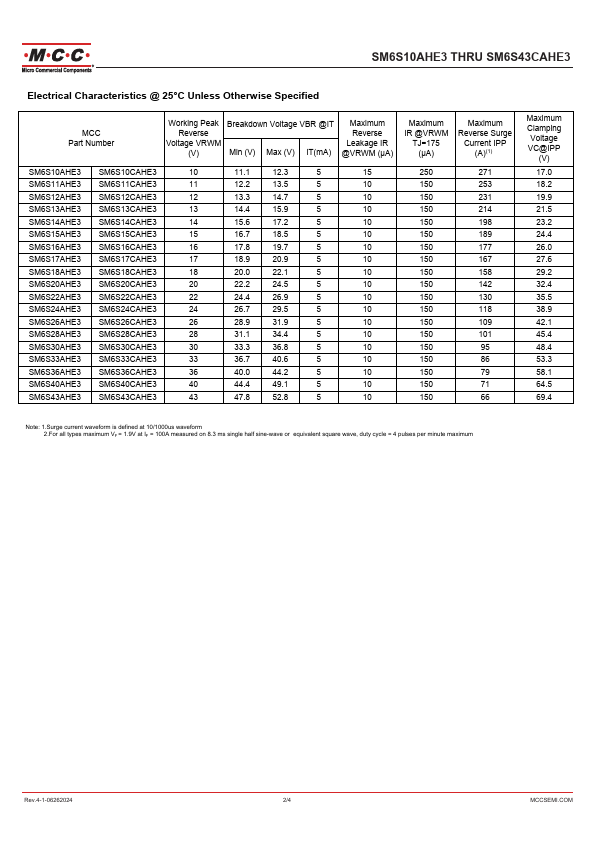

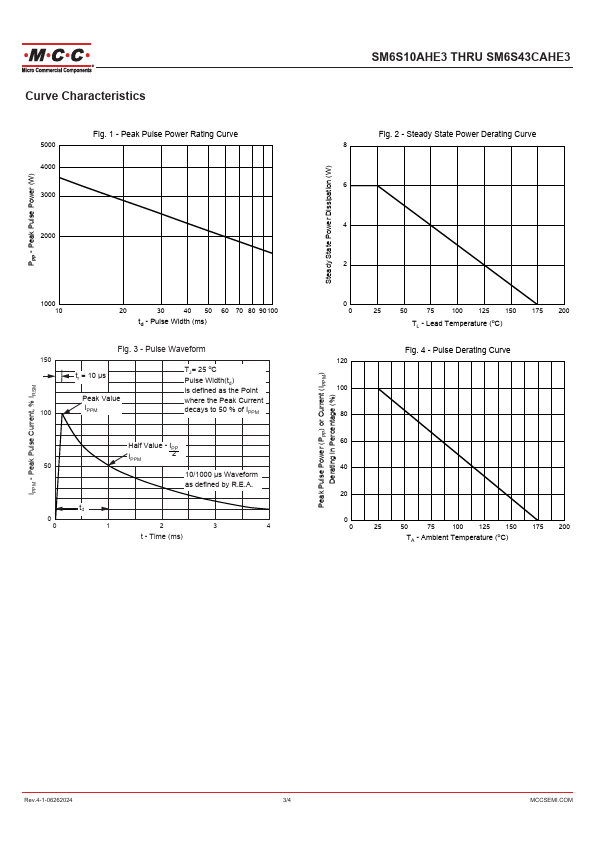

Full PDF Text Transcription

Click to expand full text
SM6S10AHE3 THRU SM6S43CAHE3 Features • AEC-Q101 Qualified • Low Leakage Current • Excellent Clamping Capability • Bi-directional Polarity • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix Designates RoHS Compliant.
