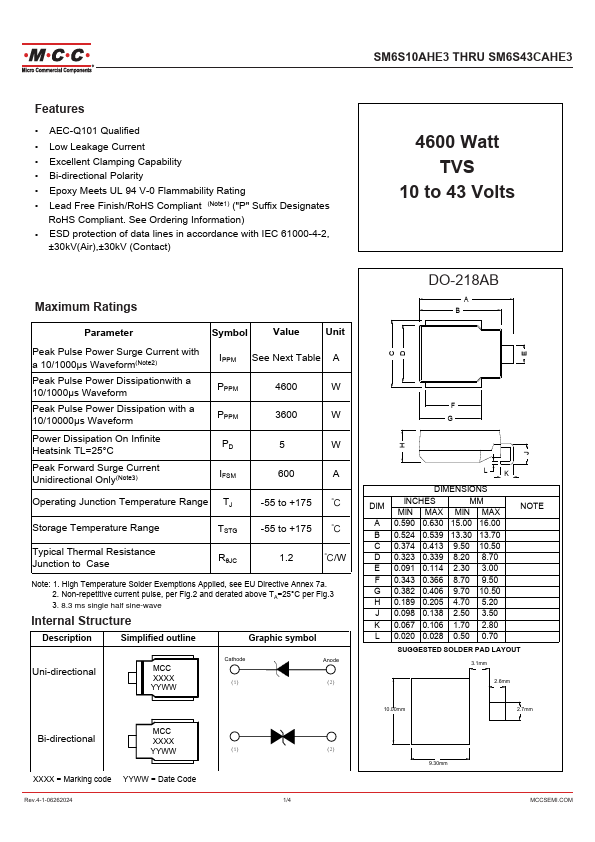

SM6S28AHE3
Overview
- AEC-Q101 Qualified
- Low Leakage Current
- Excellent Clamping Capability
- Bi-directional Polarity
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix Designates RoHS Compliant. See Ordering Information)
- ESD protection of data lines in accordance with IEC 61000-4-2, ±30kV(Air),±30kV (Contact) 4600 Watt TVS 10 to 43 Volts
