SM6S36AHE3 Overview
Key Specifications
Max Operating Temp: 175 °C
Min Operating Temp: -55 °C
Description

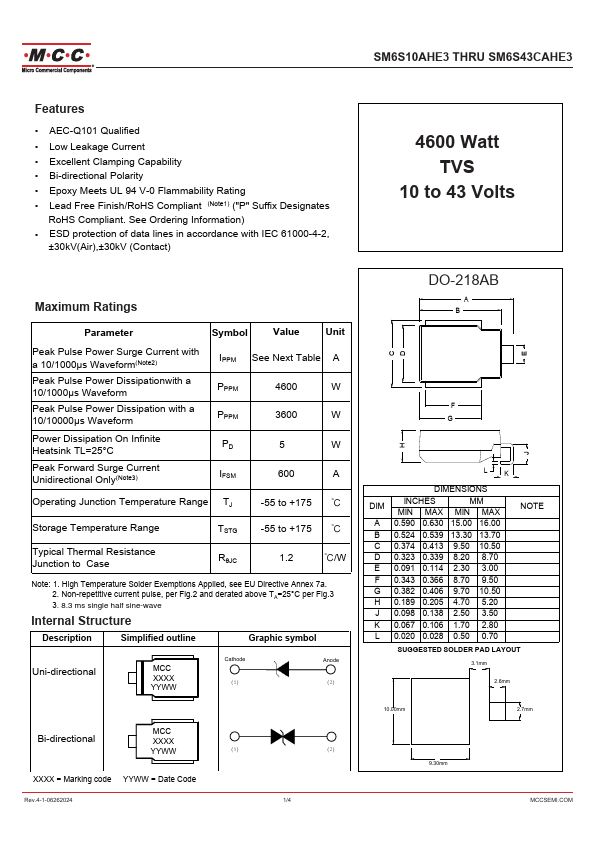

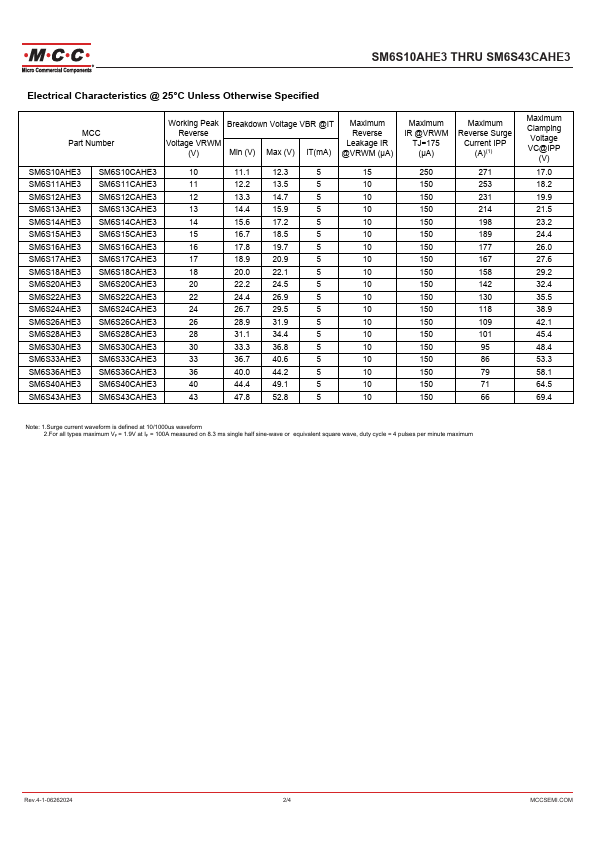

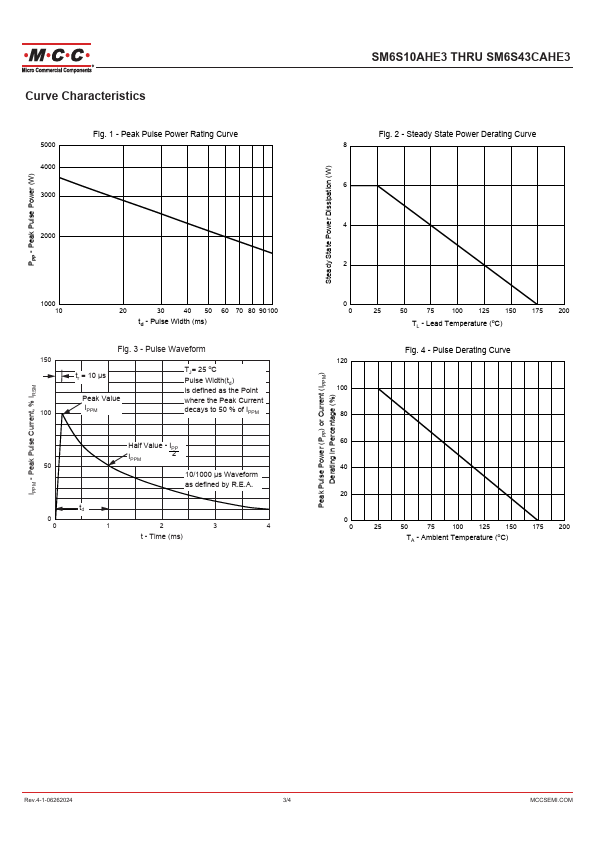

Simplified outline Graphic symbol Uni-directional MCC XXXX YYWW Cathode （1） Anode （2） Bi-directional MCC XXXX YYWW （1） XXXX = Marking code YYWW = Date Code Rev.4-1-06262024 （2） 1/4 DO-218AB A B E D C F G H J LK DIMENSIONS DIM INCHES MM MIN MAX MIN MAX A 0.590 0.630 15.00 16.00 B 0.524 0.539 13.30 13.70 C 0.374 0.413 9.50 10.50 D 0.323 0.339 8.20 8.70 E 0.091 0.114 2.30 3.00 F 0.343 0.366 8.70 9.50 G 0.382 0.406 9.70 10.50 H 0.189 0.205 4.70 5.20 J 0.098 0.138 2.50 3.50 K 0.067 0.106 1.70 2.80 L 0.020 0.028 0.50 0.70 NOTE SUGGESTED SOLDER PAD LAYOUT 3.1mm 2.6mm 10.00mm 2.7mm 9.30mm SM6S10AHE3 THRU SM6S43CAHE3 MCC Part Number.
Key Features
- AEC-Q101 Qualified
- Low Leakage Current
- Excellent Clamping Capability
- Bi-directional Polarity
- Epoxy Meets UL 94 V-0 Flammability Rating
