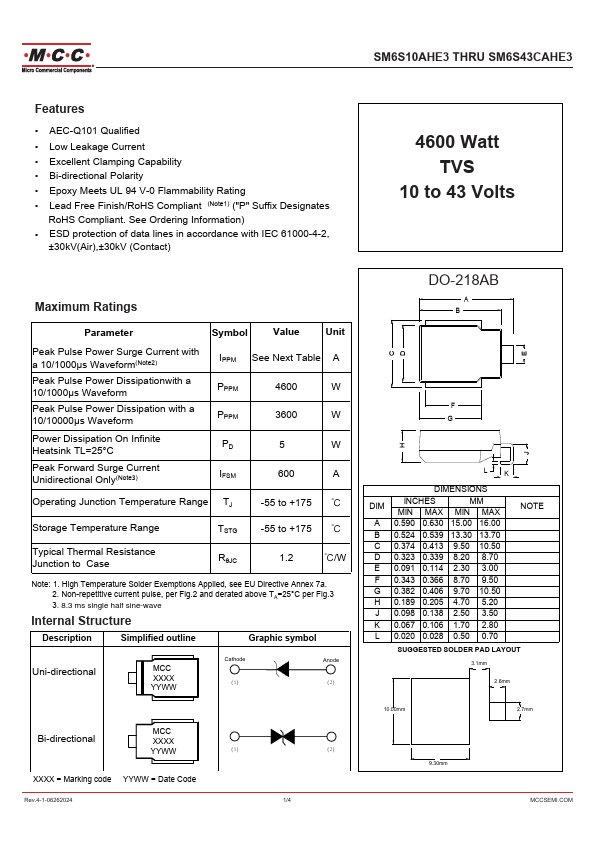

SM6S43CAHE3 Overview
Simplified outline Graphic symbol Uni-directional MCC XXXX YYWW Cathode （1） Anode （2） Bi-directional MCC XXXX YYWW （1） XXXX = Marking code YYWW = Date Code Rev.4-1-06262024 （2） 1/4 DO-218AB A B E D C F G H J LK DIMENSIONS DIM INCHES MM MIN MAX MIN MAX A 0.590.
SM6S43CAHE3 Key Features
- AEC-Q101 Qualified
- Low Leakage Current
- Excellent Clamping Capability
- Bi-directional Polarity
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/RoHS pliant (Note1) ("P" Suffix Designates
- ESD protection of data lines in accordance with IEC 61000-4-2
- 55 to +175 ℃
- 55 to +175 ℃
