SMAJ4728A - 1.0 Watt Surface Mount Silicon Zener Diodes

General Description

Simplified outline Uni-directional 1 XXXX = Marking code MCC XXXX 2 Cathode Mark Graphic symbol Cathode （1） Anode （2） SMA (DO-214AC) LEAD FRAME H J Cathode Mark E D F G CA B DIMENSIONS DIM INCHES MIN MAX MM MIN MAX A 0.075 0.096 1.90 2.44 B 0.050 0.064 1.27 1.63 C 0.002 0.008

Key Features

  • For Surface Mount.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SMAJ4728A SURFACE MOUNT SILICON ZENER DIODES SunMate
SMAJ4728A SILICON 2 WATT ZENER DIODES Microsemi
SMAJ4728A ZENER DIODES ETC
SMAJ4728A Surface Mount Silicon Zener Diodes HY
SMAJ4728 Surface Mount Zener Rectifiers SMD

Other Datasheets by Micro Commercial Components

Part Number Description
SMAJ4728 Silicon 1 Watt Zener Diodes
SMAJ4729 Silicon 1 Watt Zener Diodes
SMAJ4729A 1.0 Watt Surface Mount Silicon Zener Diodes
SMAJ4730 Silicon 1 Watt Zener Diodes
SMAJ4730A 1.0 Watt Surface Mount Silicon Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

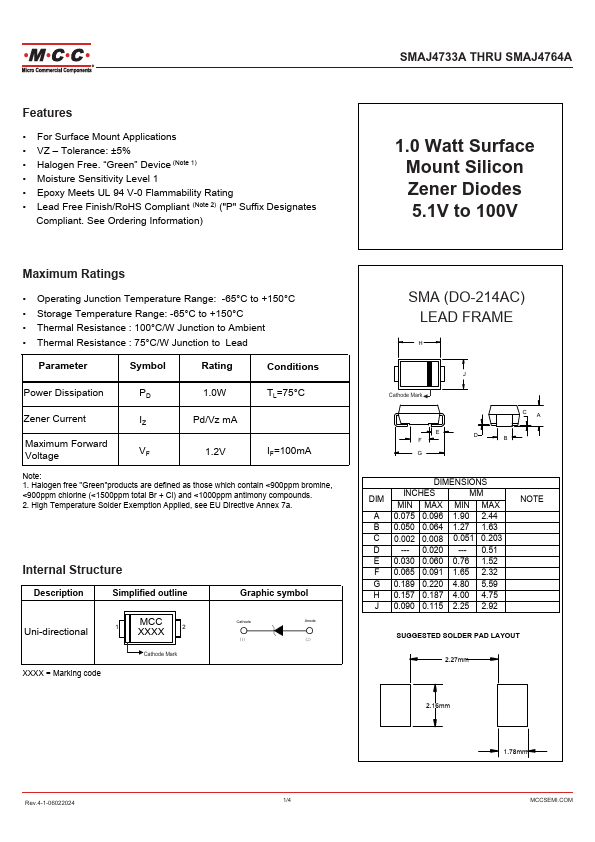

SMAJ4733A THRU SMAJ4764A Features • For Surface Mount Applications • VZ – Tolerance: ±5% • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant (Note 2) ("P" Suffix Designates Compliant. See Ordering Information) 1.0 Watt Surface Mount Silicon Zener Diodes 5.1V to 100V Maximum Ratings • Operating Junction Temperature Range: -65°C to +150°C • Storage Temperature Range: -65°C to +150°C • Thermal Resistance : 100°C/W Junction to Ambient • Thermal Resistance : 75°C/W Junction to Lead Parameter Symbol Rating Conditions Power Dissipation PD 1.0W TL=75°C Zener Current IZ Pd/Vz mA Maximum Forward Voltage VF 1.2V IF=100mA Note: 1.
