SMAJ4730A Overview
Description

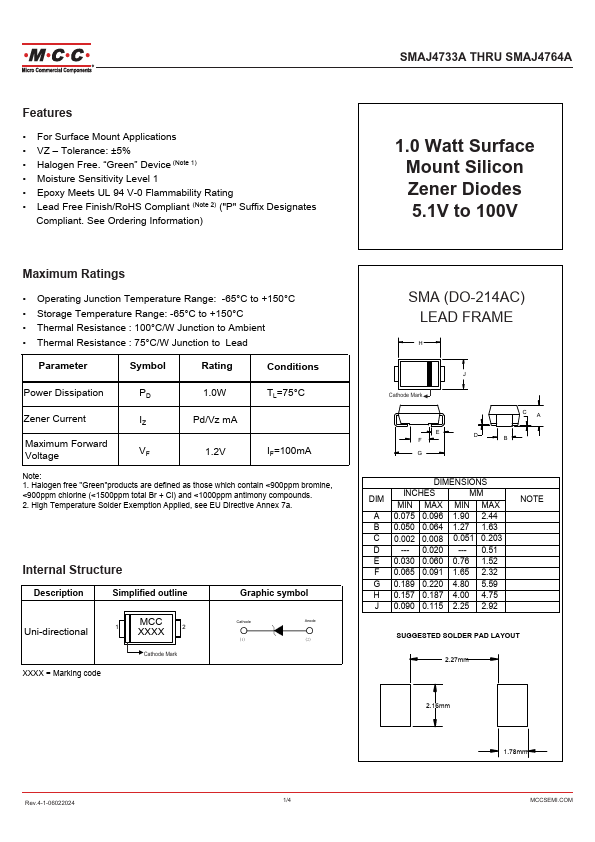

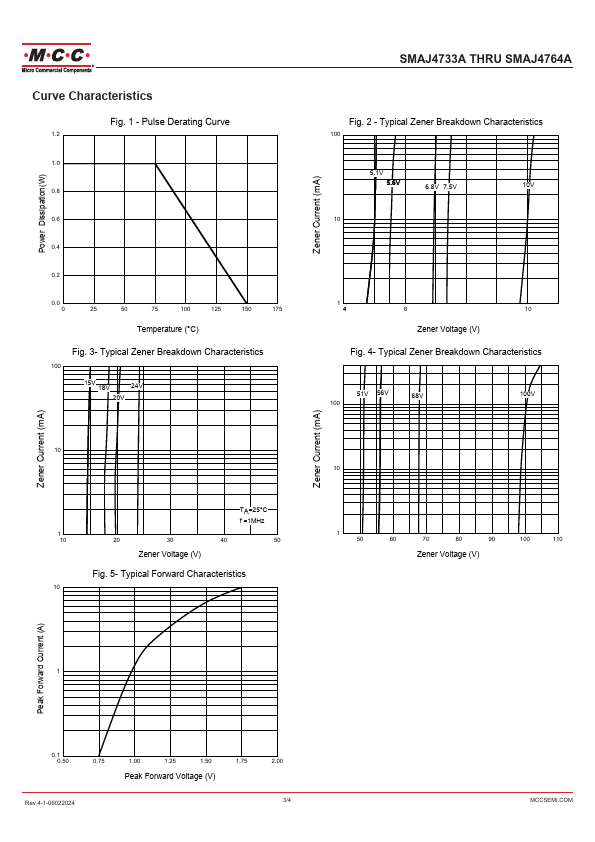

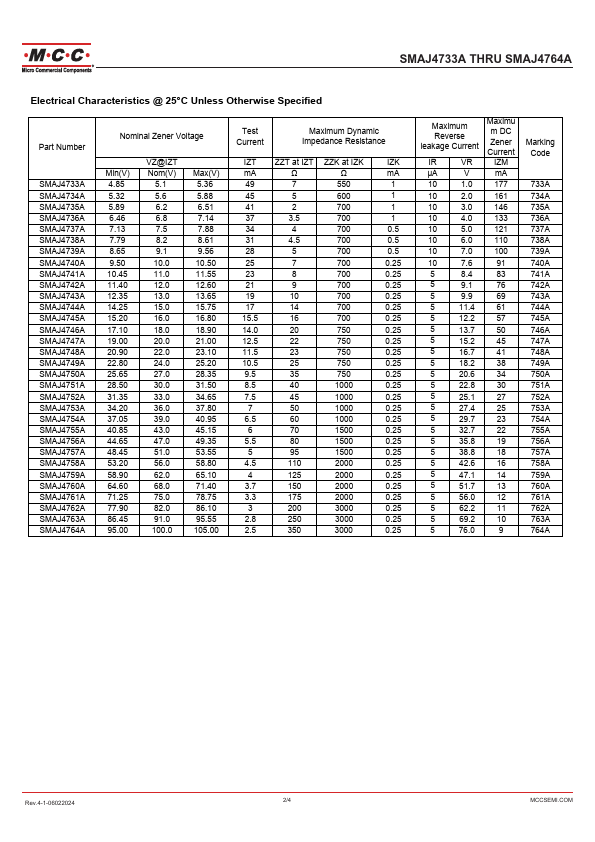

Simplified outline Uni-directional 1 XXXX = Marking code MCC XXXX 2 Cathode Mark Graphic symbol Cathode （1） Anode （2） SMA (DO-214AC) LEAD FRAME H J Cathode Mark E D F G CA B DIMENSIONS DIM INCHES MIN MAX MM MIN MAX A 0.075 0.096 1.90 2.44 B 0.050 0.064 1.27 1.63 C 0.002 0.008 0.051 0.203 D --- 0.020 --- 0.51 E 0.030 0.060 0.76 1.52 F 0.065 0.091 1.65 2.32 G 0.189 0.220 4.80 5.59 H 0.157 0.187 4.00 4.75 J 0.090 0.115 2.25 2.92 NOTE SUGGESTED SOLDER PAD LAYOUT 2.27mm 2.16mm 1.78mm Rev.4-1-06022024 1/4 SMAJ4733A THRU SMAJ4764A Part Number SMAJ4733A SMAJ4734A SMAJ4735A SMAJ4736A SMAJ4737A SMAJ4738A SMAJ4739A SMAJ4740A SMAJ4741A SMAJ4742A SMAJ4743A SMAJ4744A SMAJ4745A SMAJ4746A SMAJ4747A SMAJ4748A SMAJ4749A SMAJ4750A SMAJ4751A SMAJ4752A SMAJ4753A SMAJ4754A SMAJ4755A SMAJ4756A SMAJ4757A SMAJ4758A SMAJ4759A SMAJ4760A SMAJ4761A SMAJ47.
Key Features
- For Surface Mount Applications
- VZ – Tolerance: ±5%
- Halogen Free. “Green” Device (Note
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/RoHS Compliant (Note
- ("P" Suffix Designates Compliant. See 1.0 Watt Surface Mount Silicon Zener Diodes 5.1V to 100V
