SMAJ4736A - 1.0 Watt Surface Mount Silicon Zener Diodes

This page provides the datasheet information for the SMAJ4736A, a member of the SMAJ4728A 1.0 Watt Surface Mount Silicon Zener Diodes family.

Description

Simplified outline Uni-directional 1 XXXX = Marking code MCC XXXX 2 Cathode Mark Graphic symbol Cathode （1） Anode （2） SMA (DO-214AC) LEAD FRAME H J Cathode Mark E D F G CA B DIMENSIONS DIM INCHES MIN MAX MM MIN MAX A 0.075 0.096 1.90 2.44 B 0.050 0.064 1.27 1.63 C 0.002 0.008

Features

  • For Surface Mount.

📥 Download Datasheet

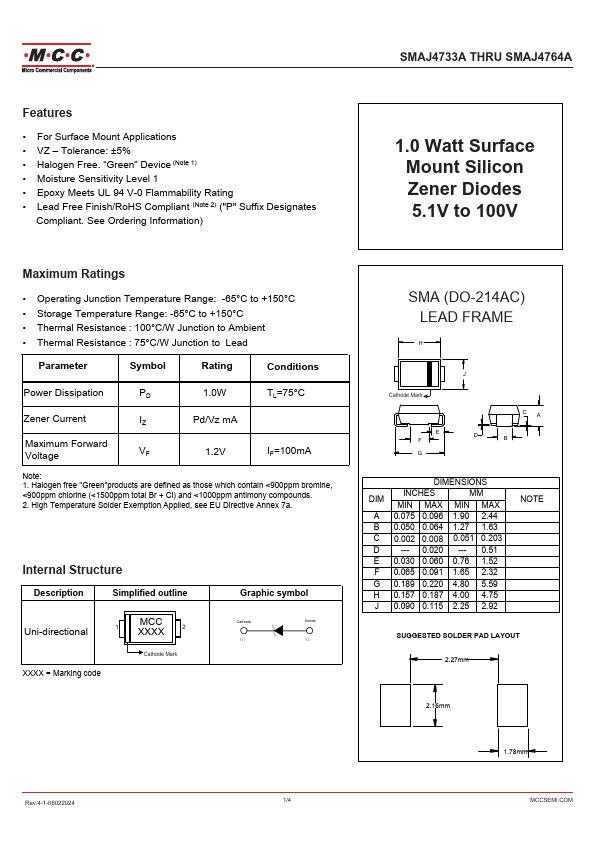

Datasheet preview – SMAJ4736A

📁 Similar Datasheet

  • SMAJ4736A - SILICON 2 WATT ZENER DIODES (Microsemi)
  • SMAJ4736A - ZENER DIODES (ETC)
  • SMAJ4736A - SURFACE MOUNT SILICON ZENER DIODES (SunMate)
  • SMAJ4736A - Surface Mount Silicon Zener Diodes (HY)
  • SMAJ4736 - Surface Mount Zener Rectifiers (SMD)
  • SMAJ4730 - Surface Mount Zener Rectifiers (SMD)
  • SMAJ4730A - SURFACE MOUNT SILICON ZENER DIODES (SunMate)
  • SMAJ4730A - SILICON 2 WATT ZENER DIODES (Microsemi)
  • SMAJ4730A - ZENER DIODES (ETC)
  • SMAJ4730A - Surface Mount Silicon Zener Diodes (HY)
Other Datasheets by MCC
  • SMAJ4736 - Silicon 1 Watt Zener Diodes
  • SMAJ4730 - Silicon 1 Watt Zener Diodes
  • SMAJ4730A - 1.0 Watt Surface Mount Silicon Zener Diodes
  • SMAJ4731 - Silicon 1 Watt Zener Diodes
  • SMAJ4731A - 1.0 Watt Surface Mount Silicon Zener Diodes
  • SMAJ4732 - Silicon 1 Watt Zener Diodes
  • SMAJ4732A - 1.0 Watt Surface Mount Silicon Zener Diodes
  • SMAJ4733 - Silicon 1 Watt Zener Diodes

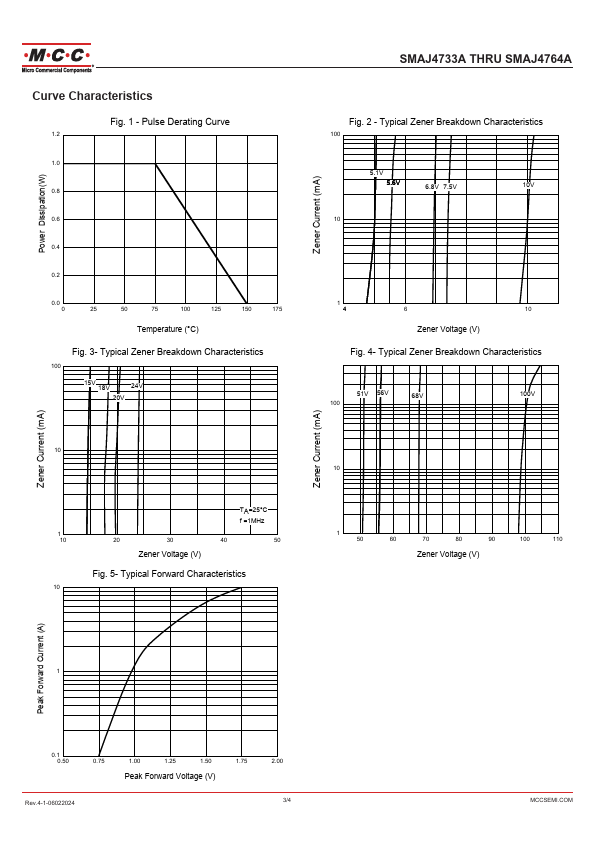

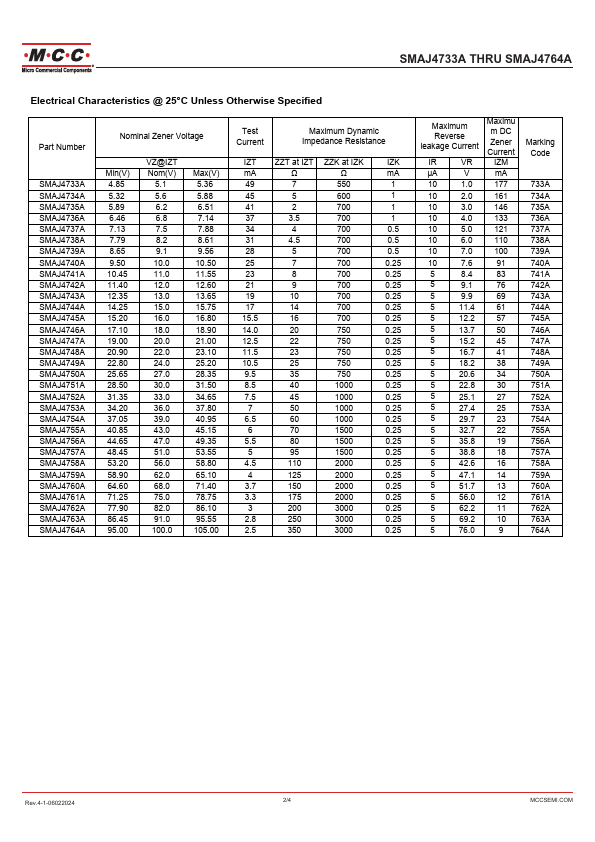

Full PDF Text Transcription

Click to expand full text
SMAJ4733A THRU SMAJ4764A Features • For Surface Mount Applications • VZ – Tolerance: ±5% • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant (Note 2) ("P" Suffix Designates Compliant. See Ordering Information) 1.0 Watt Surface Mount Silicon Zener Diodes 5.1V to 100V Maximum Ratings • Operating Junction Temperature Range: -65°C to +150°C • Storage Temperature Range: -65°C to +150°C • Thermal Resistance : 100°C/W Junction to Ambient • Thermal Resistance : 75°C/W Junction to Lead Parameter Symbol Rating Conditions Power Dissipation PD 1.0W TL=75°C Zener Current IZ Pd/Vz mA Maximum Forward Voltage VF 1.2V IF=100mA Note: 1.
