SMAJ4744A Datasheet 1.0 Watt Surface Mount Silicon Zener Diodes

Manufacturer: Micro Commercial Components

This datasheet includes multiple variants, all published together in a single manufacturer document.

SMAJ4744A Overview

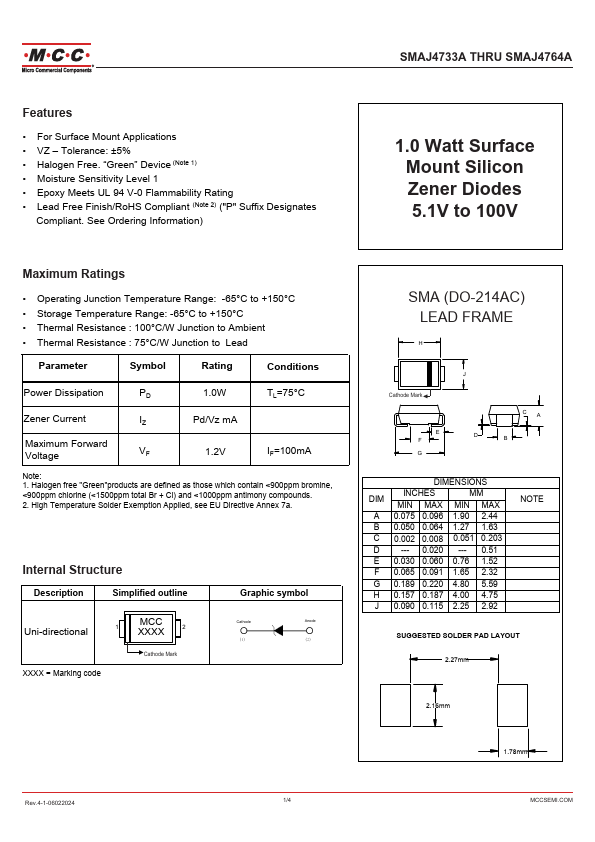

SMAJ4733A THRU SMAJ4764A Features • For Surface Mount Applications • VZ – Tolerance: ±5% • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS pliant (Note 2) ("P" Suffix Designates pliant. See Ordering Information) 1.0 Watt Surface Mount Silicon Zener Diodes 5.1V to 100V Maximum Ratings • Operating Junction Temperature Range: -65°C to +150°C • Storage...

SMAJ4744A Key Features

  • For Surface Mount
