SMAZ12 - 1 Watt Zener Diode

This page provides the datasheet information for the SMAZ12, a member of the SMAZ5V1 1 Watt Zener Diode family.

Product Overview

MCC

📥 Download Datasheet

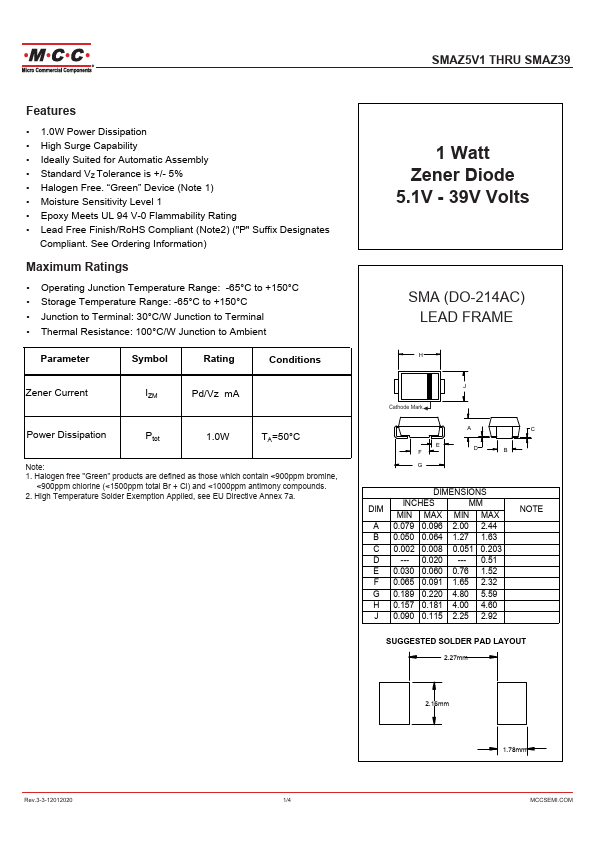

SMAZ12 1 Watt Zener Diode by MCC - Datasheet Preview — Datasheet preview – SMAZ12

Datasheet Details

Part number	SMAZ12
Manufacturer	MCC
File Size	297.05 KB
Description	1 Watt Zener Diode
Datasheet	SMAZ12 Datasheet

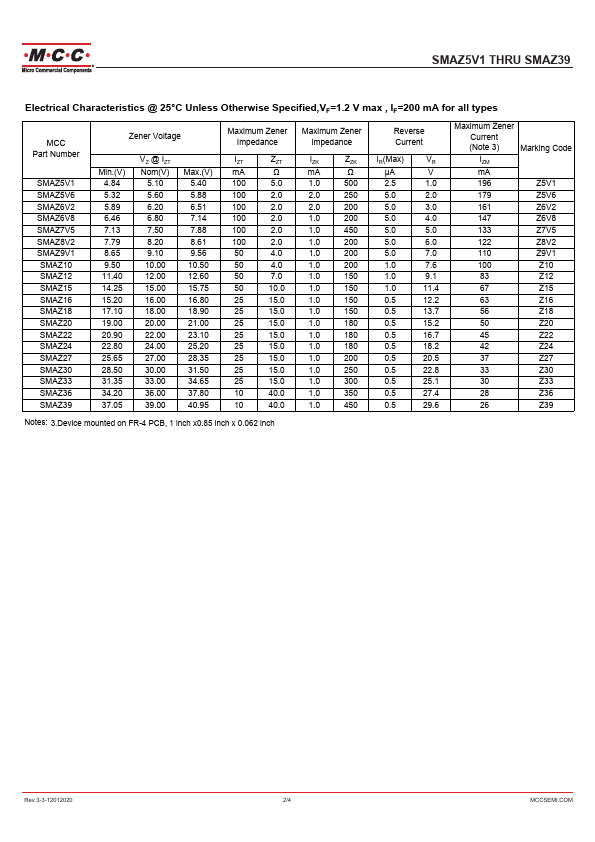

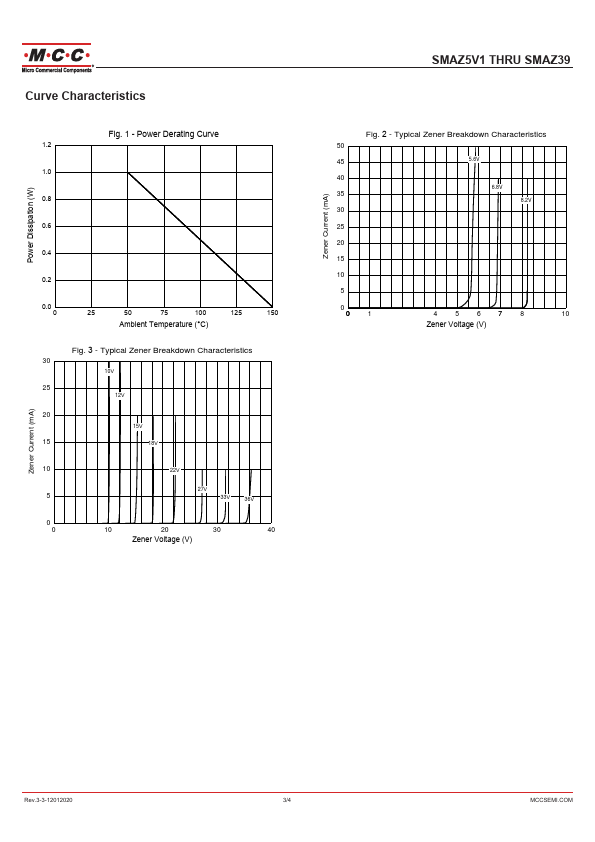

Additional preview pages of the SMAZ12 datasheet.

SMAZ12 Product details

Features

Halogen free available upon request by adding suffix "-HF".
1.0W Power Dissipation.
High Surge Capability.
Ideally Suited for Automatic Assembly.
Standard VZ Tolerance is +/- 5%.
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1 MaximumRatings.
Storage Temperature Range(TSTG): -65к to +150к.
