SMAZ18 - 1 Watt Zener Diode

Download the SMAZ18 datasheet PDF. This datasheet also covers the SMAZ5V1 variant, as both devices belong to the same 1 watt zener diode family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • 1.0W Power Dissipation.
  • High Surge Capability.
  • Ideally Suited for Automatic Assembly.
  • Standard VZ Tolerance is +/- 5%.
  • Halogen Free. “Green” Device (Note 1).
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant (Note2) ("P" Suffix Designates Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range: -65°C to +150°C.
  • Storag.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMAZ5V1-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SMAZ18 Zener diode Excel Semiconductor
SMAZ18 SURFACE MOUNT SILICON ZENER DIODES Sunmate
SMAZ18 ZENER DIODES GME
SMAZ18 1.0W SURFACE MOUNT ZENER DIODE Diodes
SMAZ18 SURFACE MOUNT SILICON ZENER DIODES EIC

Other Datasheets by Micro Commercial Components

Part Number Description
SMAZ10 1 Watt Zener Diode
SMAZ12 1 Watt Zener Diode
SMAZ15 1 Watt Zener Diode
SMAZ16 1 Watt Zener Diode
SMAZ20 1 Watt Zener Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

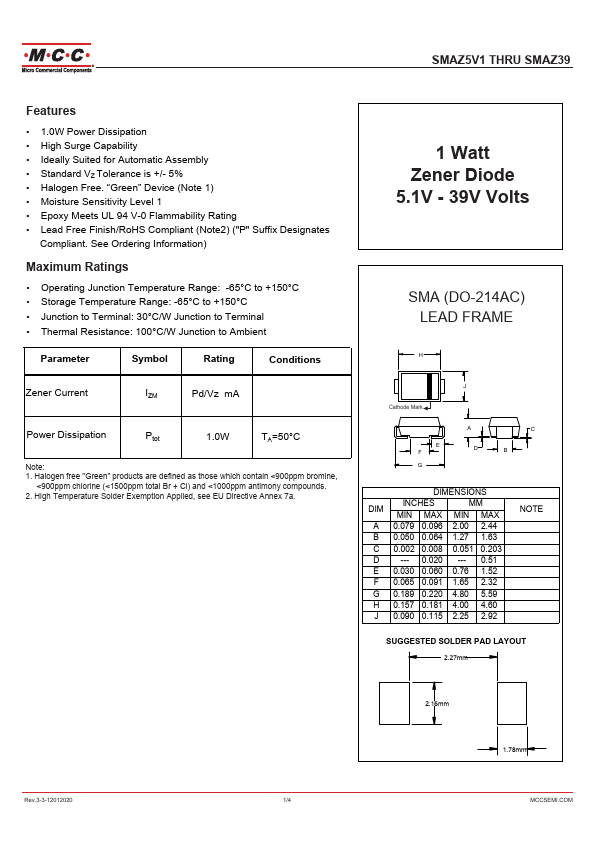

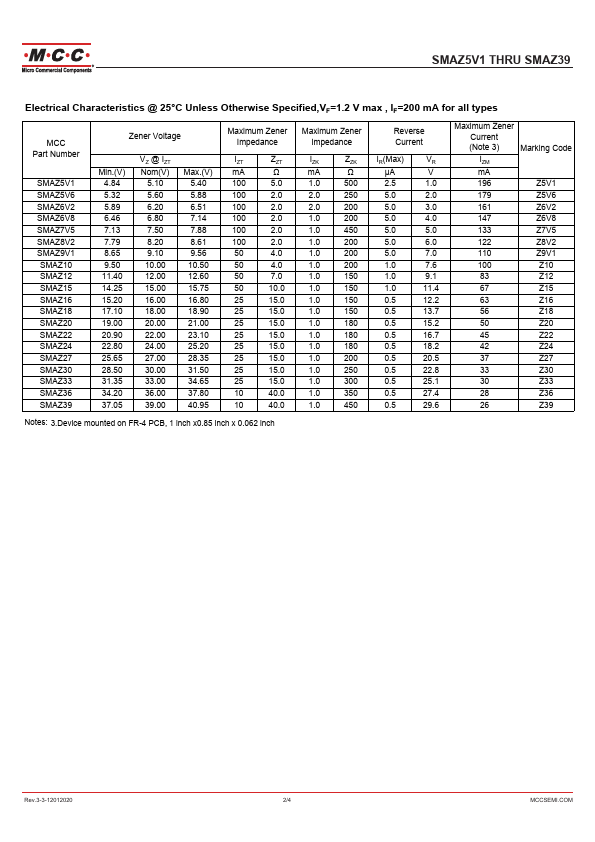

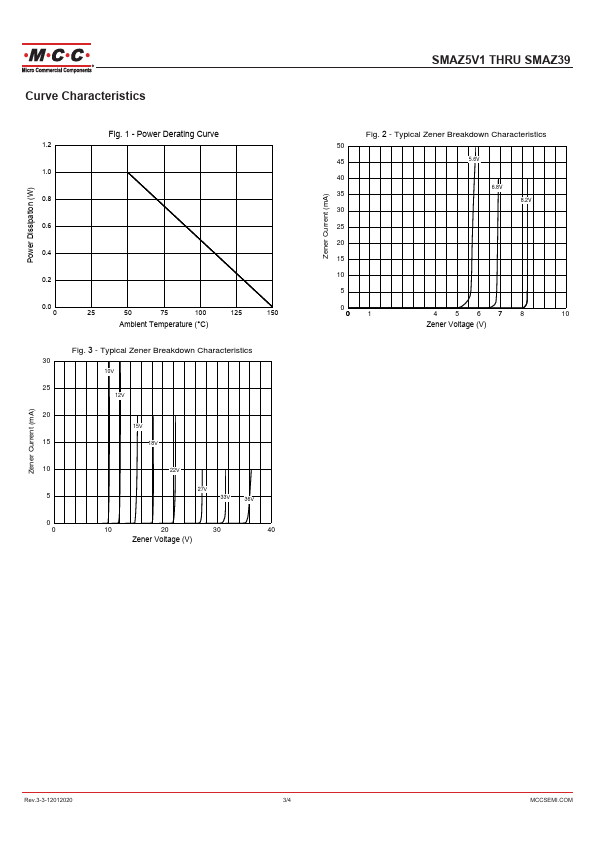

SMAZ5V1 THRU SMAZ39 Features • 1.0W Power Dissipation • High Surge Capability • Ideally Suited for Automatic Assembly • Standard VZ Tolerance is +/- 5% • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant (Note2) ("P" Suffix Designates Compliant. See Ordering Information) Maximum Ratings • Operating Junction Temperature Range: -65°C to +150°C • Storage Temperature Range: -65°C to +150°C • Junction to Terminal: 30°C/W Junction to Terminal • Thermal Resistance: 100°C/W Junction to Ambient Parameter Symbol Rating Conditions Zener Current IZM Pd/Vz mA Power Dissipation Ptot 1.0W TA=50°C Note: 1.
