Micro Commercial Components SMAZ30
1 Watt Zener Diode
| Part No. | SMAZ30 |
|---|---|
| Datasheet | SMAZ30 Download |
| Manufacturer |  Micro Commercial Components |
| Description | 1 Watt Zener Diode |
| Buy | Stock & Price |

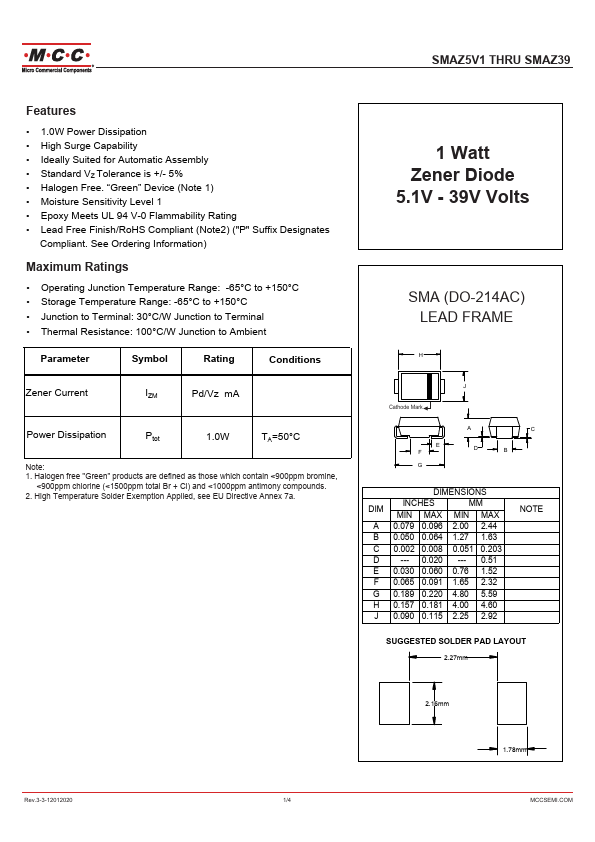

FEATURES
● 1.0W Power Dissipation● High Surge Capability
● Ideally Suited for Automatic Assembly
● Standard VZ Tolerance is +/- 5%
● Halogen Free. “Green” Device (Note 1)
● Moisture Sensitivity Level 1
● Epoxy Meets UL 94 V-0 Flammability Rating
● Lead Free Finish/RoHS Compliant (Note2) ("P" Suffix Designates Compliant. See Ordering Information)
MAXIMUM RATINGS
● Operating Junction Temperature Range: -65°C to +150°C● Storage Temperature Range: -65°C to +150°C
● Junction to Terminal: 30°C/W Junction to Terminal
● Thermal Resistance: 100°C/W Junction to Ambient Parameter Symbol Rating Conditions Zener Current IZM Pd/Vz mA Power Dissipation Ptot 1.0W TA=50°C Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 2. High Temperature Solder Exemption Applied, see EU Directive Annex 7a. 1 Watt Zener Diode 5.1V - 39V Volts SMA (DO-214AC) LEAD FRAME H Cathode Mark E F G J A D C B DIMENSIONS DIM INCHES MIN MAX MM MIN MAX A 0.079 0.096 2.00 2.44 B 0.050 0.064 1.27 1.63 C 0.002 0.008 0.051 0.203 D --- 0.020 --- 0.51 E 0.030 0.060 0.
