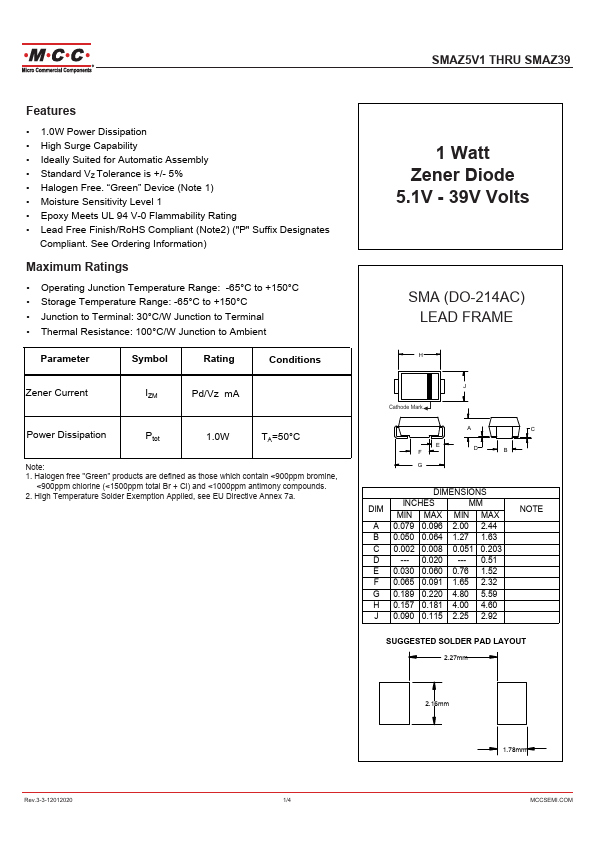

SMAZ5V1
SMAZ5V1 is 1 Watt Zener Diode manufactured by Micro Commercial Components.
Features
- 1.0W Power Dissipation
- High Surge Capability
- Ideally Suited for Automatic Assembly
- Standard VZ Tolerance is +/- 5%
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant (Note2) ("P" Suffix Designates pliant. See Ordering Information)
Maximum Ratings
- Operating Junction Temperature Range: -65°C to +150°C
- Storage Temperature Range: -65°C to +150°C
- Junction to Terminal: 30°C/W Junction to Terminal
- Thermal Resistance: 100°C/W Junction to Ambient
Parameter
Symbol
Rating
Conditions
Zener Current
Pd/Vz m A
Power Dissipation
Ptot
1.0W
TA=50°C
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine,
<900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. 2. High Temperature Solder Exemption Applied, see EU Directive Annex 7a.
1 Watt Zener Diode 5.1V
- 39V Volts
SMA (DO-214AC) LEAD FRAME
Cathode Mark
DIMENSIONS
INCHES MIN MAX
MM MIN MAX
A 0.079 0.096 2.00 2.44
B 0.050 0.064 1.27 1.63
C 0.002 0.008 0.051...
