SMAZ5V6 Datasheet

Manufacturer: Micro Commercial Components

This datasheet includes multiple variants, all published together in a single manufacturer document.

SMAZ5V6 datasheet preview

Datasheet Details

Part number	SMAZ5V6
Datasheet	SMAZ5V6 SMAZ5V1 Datasheet (PDF)
File Size	620.41 KB
Manufacturer	Micro Commercial Components
Description	1 Watt Zener Diode

SMAZ5V6 Overview

SMAZ5V1 THRU.

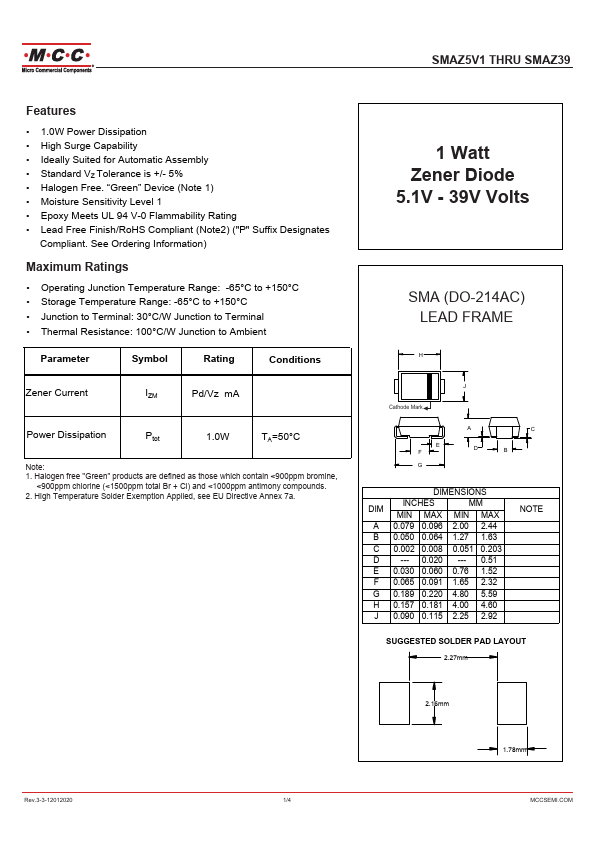

SMAZ5V6 Key Features

1.0W Power Dissipation
High Surge Capability
Ideally Suited for Automatic Assembly
Standard VZ Tolerance is +/- 5%
Halogen Free. “Green” Device (Note 1)
Moisture Sensitivity Level 1
Epoxy Meets UL 94 V-0 Flammability Rating
Lead Free Finish/RoHS pliant (Note2) ("P" Suffix Designates
Operating Junction Temperature Range: -65°C to +150°C
Storage Temperature Range: -65°C to +150°C
