SMAZ8V2 - 1 Watt Zener Diode

This page provides the datasheet information for the SMAZ8V2, a member of the SMAZ5V1 1 Watt Zener Diode family.

Features

  • Halogen free available upon request by adding suffix "-HF".
  • 1.0W Power Dissipation.
  • High Surge Capability.
  • Ideally Suited for Automatic Assembly.
  • Standard VZ Tolerance is +/- 5%.
  • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
  • Epoxy meets UL 94 V-0 flammability rating.
  • Moisture Sensitivity Level 1 MaximumRatings.
  • Storage Temperature Range(TSTG): -65к to +150к.

📥 Download Datasheet

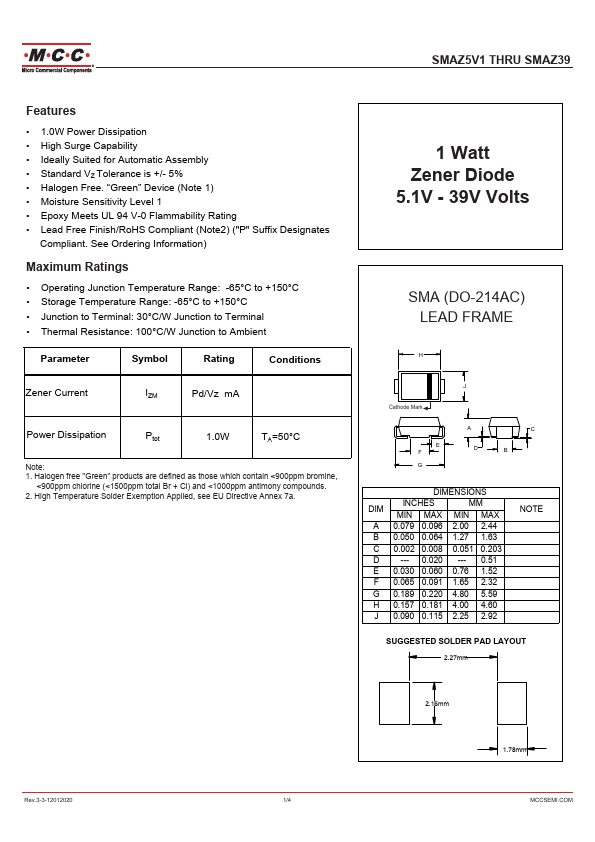

Datasheet preview – SMAZ8V2

Datasheet Details

Part number SMAZ8V2
Manufacturer MCC
File Size 297.05 KB
Description 1 Watt Zener Diode
Datasheet download datasheet SMAZ8V2 Datasheet

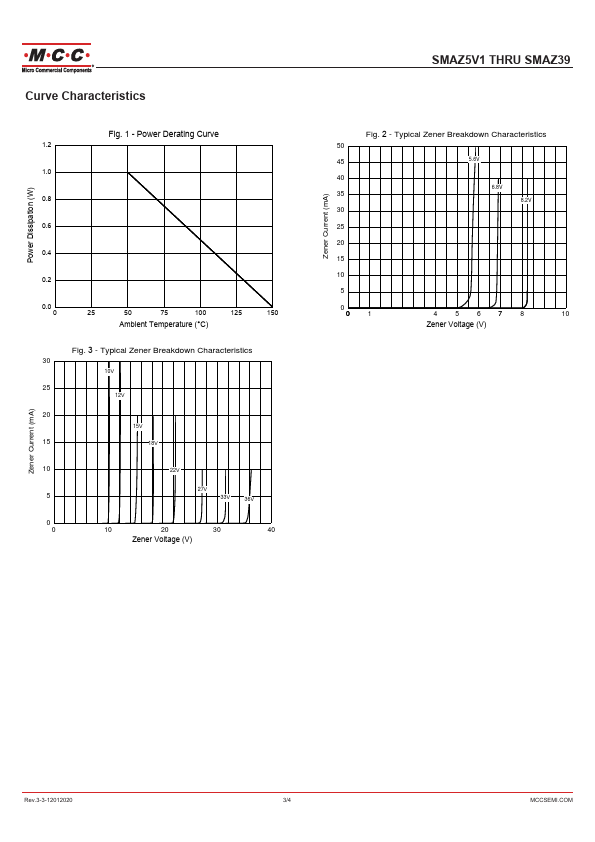

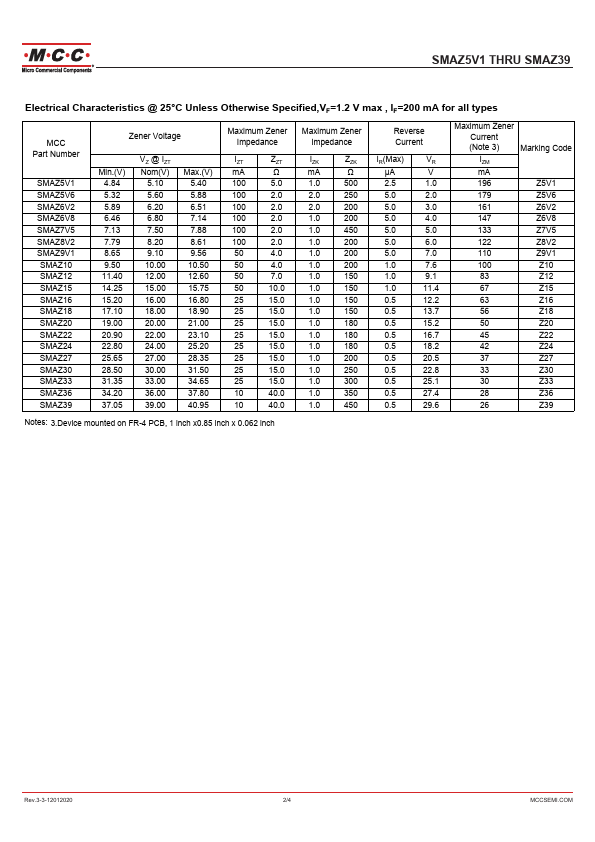

Additional preview pages of the SMAZ8V2 datasheet.

📁 Similar Datasheet

  • SMAZ8V2 - Zener diode (Excel Semiconductor)
  • SMAZ8V2 - SURFACE MOUNT SILICON ZENER DIODES (Sunmate)
  • SMAZ8V2 - ZENER DIODES (GME)
  • SMAZ8V2 - 1.0W SURFACE MOUNT ZENER DIODE (Diodes)
  • SMAZ8V2 - SURFACE MOUNT SILICON ZENER DIODES (EIC)
  • SMAZ82 - SURFACE MOUNT SILICON ZENER DIODES (Sunmate)
  • SMAZ10 - Zener diode (Excel Semiconductor)
  • SMAZ10 - SURFACE MOUNT SILICON ZENER DIODES (Sunmate)
  • SMAZ10 - ZENER DIODES (GME)
  • SMAZ10 - 1.0W SURFACE MOUNT ZENER DIODE (Diodes)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text
MCC TM Micro Commercial Components   omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# Features • Halogen free available upon request by adding suffix "-HF" • 1.0W Power Dissipation • High Surge Capability • Ideally Suited for Automatic Assembly • Standard VZ Tolerance is +/- 5% • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) • Epoxy meets UL 94 V-0 flammability rating • Moisture Sensitivity Level 1 MaximumRatings • Storage Temperature Range(TSTG): -65к to +150к • Operating Temperature Range(Tj): -65к to +150к SMAZ5V1 THRU SMAZ39 1 Watt Zener Diode 5.
