SMAZ9V1 Datasheet

Manufacturer: Micro Commercial Components

This datasheet includes multiple variants, all published together in a single manufacturer document.

SMAZ9V1 datasheet preview

Datasheet Details

Part number	SMAZ9V1
Datasheet	SMAZ9V1 SMAZ5V1 Datasheet (PDF)
File Size	620.41 KB
Manufacturer	Micro Commercial Components
Description	1 Watt Zener Diode

SMAZ9V1 Overview

SMAZ5V1 THRU.

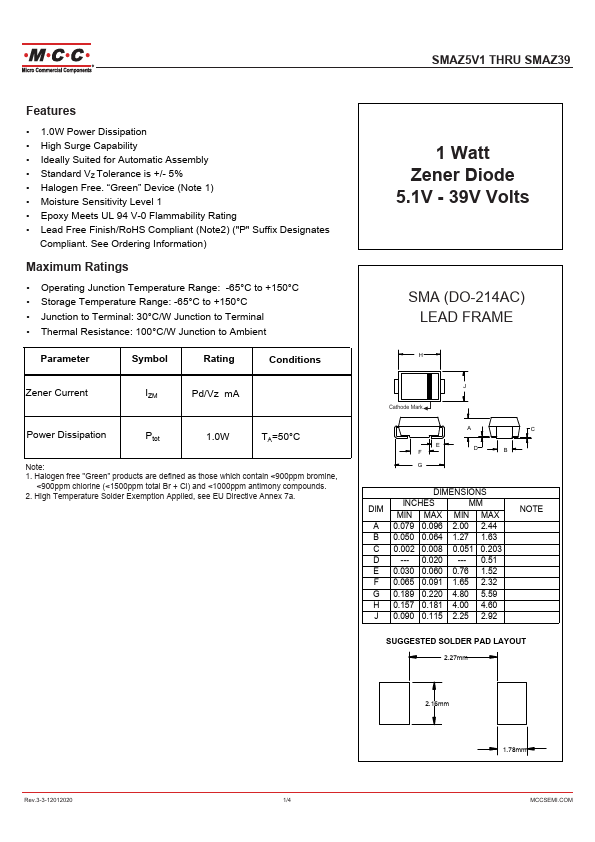

SMAZ9V1 Key Features

1.0W Power Dissipation
High Surge Capability
Ideally Suited for Automatic Assembly
Standard VZ Tolerance is +/- 5%
Halogen Free. “Green” Device (Note 1)
Moisture Sensitivity Level 1
Epoxy Meets UL 94 V-0 Flammability Rating
Lead Free Finish/RoHS pliant (Note2) ("P" Suffix Designates
Operating Junction Temperature Range: -65°C to +150°C
Storage Temperature Range: -65°C to +150°C
