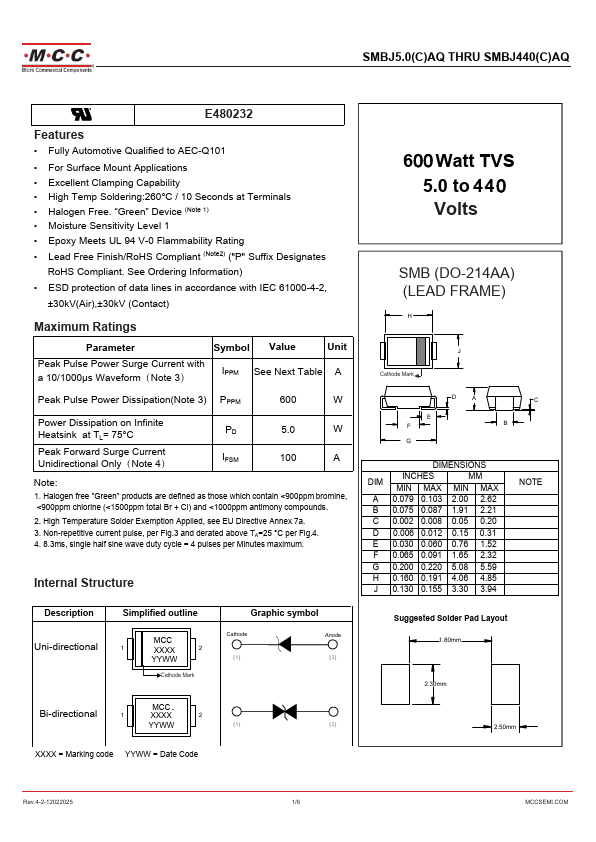

Micro Commercial Components SMBJ14AQ
600 Watt TVS
| Part No. | SMBJ14AQ |
|---|---|
| Datasheet | SMBJ14AQ Download |
| Manufacturer |  Micro Commercial Components |
| Description | 600 Watt TVS |
| Buy | Stock & Price |
FEATURES
● Fully Automotive Qualified to AEC-Q101● For Surface Mount
APPLICATIONS
● Excellent Clamping Capability● High Temp Soldering:260°C / 10 Seconds at Terminals
● Halogen Free. “Green” Device (Note 1)
● Moisture Sensitivity Level 1
● Epoxy Meets UL 94 V-0 Flammability Rating
● Lead Free Finish/RoHS Compliant (Note2) ("P" Suffix Designates RoHS Compliant. See Ordering Information)
● ESD protection of data lines in accordance with IEC 61000-4-2, ±30kV(Air),±30kV (Contact)
MAXIMUM RATINGS
Parameter Symbol Value Unit Peak Pulse Power Surge Current with a 10/1000μs Waveform（Note 3） IPPM See Next Table A Peak Pulse Power Dissipation(Note 3) PPPM 600 W Power Dissipation on Infinite Heatsink at TL= 75°C Peak Forward Surge Current Unidirectional Only（Note 4） PD 5.0 W IFSM 100 A Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 2. High Temperature Solder Exemption Applied, see EU Directive Annex 7a.
