Description

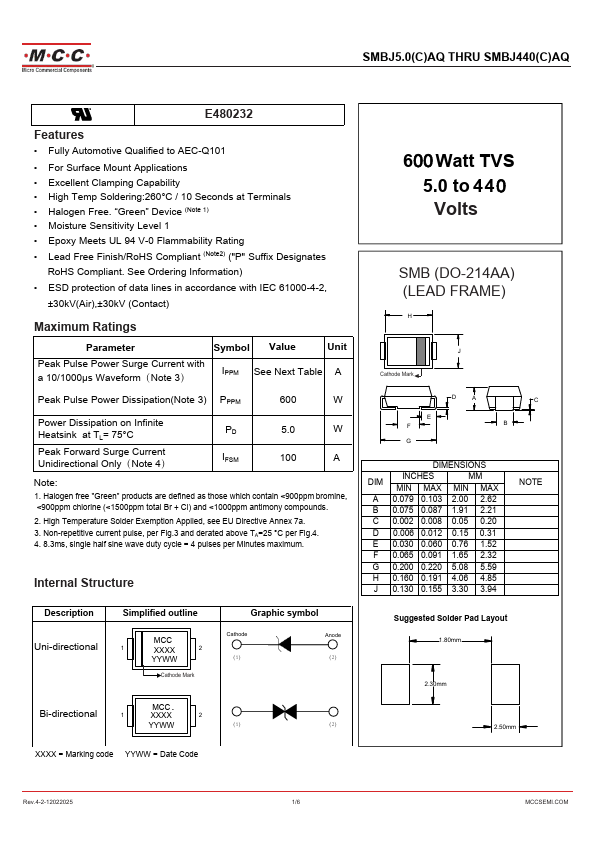

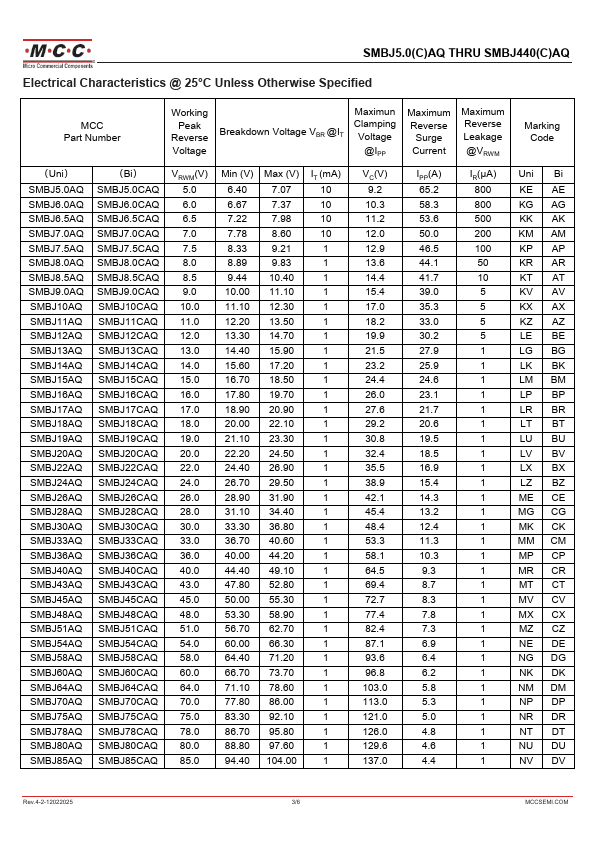

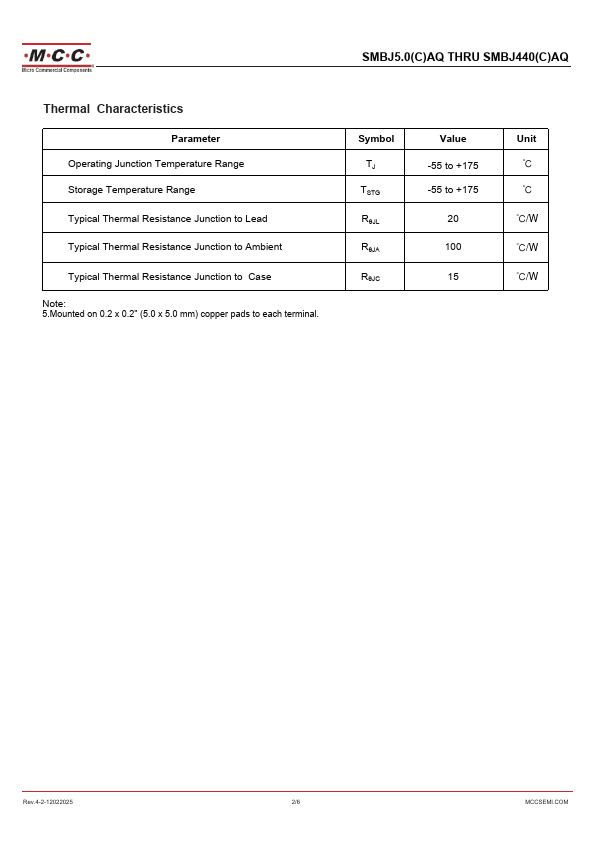

Uni-directional Simplified outline MCC 1 XXXX 2 YYWW Cathode Mark Graphic symbol Cathode Anode （1） （2） Bi-directional 1 XMXCXCX 2 YYWW （1） （2） 600 Watt TVS 5.0 to 440 Volts SMB (DO-214AA) (LEAD FRAME) H J Cathode Mark A C E F B G DIMENSIONS DIM INCHES MIN MAX MM MIN MAX A 0.079 0.103 2.00 2.62 B 0.075 0.087 1.91 2.21 C 0.002 0.008 0.05 0.20 0.006 0.012 0.15 0.31 E 0.030 0.060 0.76 1.52 F 0.065 0.091 1.65 2.32 G 0.200 0.220 5.08 5.59 H 0.160 0.191 4.06 4.85 J 0.130 0.155 3.30 3.94 NOTE Suggested Solder Pad Layout 1.80mm 2.30mm 2.50mm XXXX = Marking code YYWW = Date Code 1/6 MCCSEMI.COM SMBJ5.0(C)AQ THRU SMBJ440(C)AQ Thermal Characteristics Parameter Operating Junction Temperature Range Storage Temperature Range Typical Thermal Resistance Junction to Lead Typical Thermal Resistance Junction to Ambient Typical Thermal Resistance Junction to Case Note: 5.Mounted on 0.2 x 0.2" (5.0 x 5.0 mm) copper pads to each terminal. Symbol TJ TSTG RθJL RθJA RθJC Value -55 to +175 -55 to +175 20 100 15 Unit ℃ ℃ ℃/W ℃/W ℃/W 2/6 MCCSEMI.COM SMBJ5.0(C)AQ THRU SMBJ440(C)AQ.
Key Features
- Fully Automotive Qualified to AEC-Q101
- For Surface Mount Applications
- Excellent Clamping Capability
- High Temp Soldering:260°C / 10 Seconds at Terminals
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/RoHS Compliant (Note2) ("P" Suffix Designates RoHS Compliant. See Ordering Information)
- ESD protection of data lines in accordance with IEC 61000-4-2, ±30kV(Air),±30kV (Contact)
