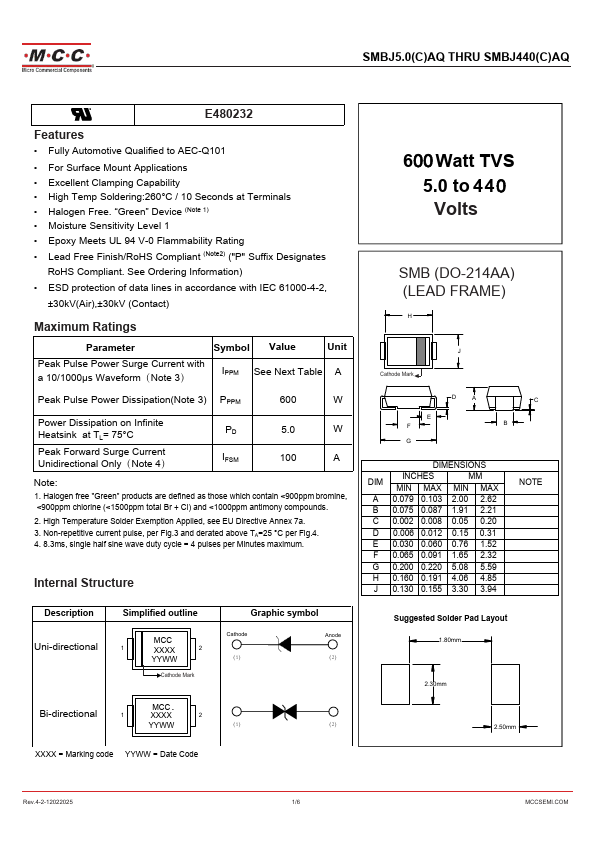

SMBJ54CAQ datasheet by Micro Commercial Components.
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | SMBJ54CAQ |
|---|---|
| Datasheet | SMBJ54CAQ SMBJ5.0AQ Datasheet (PDF) |
| File Size | 965.88 KB |
| Manufacturer | Micro Commercial Components |
| Description | 600 Watt TVS |
|
|

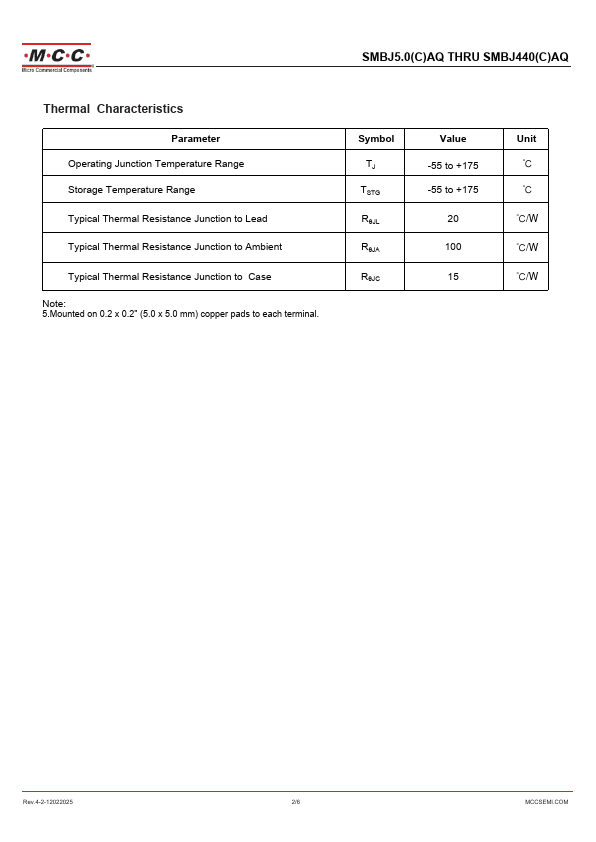

SMBJ5.0(C)AQ THRU SMBJ440(C)AQ Thermal Characteristics Parameter Operating Junction Temperature Range Storage Temperature Range Typical Junction to Lead Typical Junction to Ambient Typical Junction to Case Note: 5.Mounted on 0.2 x 0.2" (5.0 x 5.0 mm) copper pads to each terminal.
