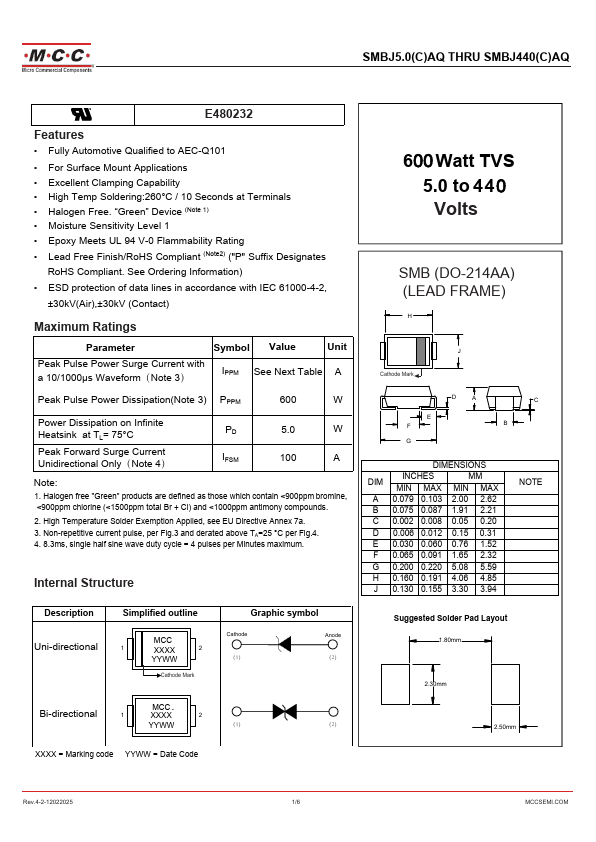

SMBJ9.0CAQ
Features
- Fully Automotive Qualified to AEC-Q101
- For Surface Mount Applications
- Excellent Clamping Capability
- High Temp Soldering:260°C / 10 Seconds at Terminals
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant (Note2) ("P" Suffix Designates
Ro HS pliant. See Ordering Information)
- ESD protection of data lines in accordance with IEC 61000-4-2,
±30k V(Air),±30k V (Contact)
Maximum Ratings
Parameter
Symbol Value
Unit
Peak Pulse Power Surge Current with a 10/1000μs Waveform（Note 3）
IPPM See Next Table A
Peak Pulse Power Dissipation(Note 3) PPPM
Power Dissipation on Infinite Heatsink at TL= 75°C
Peak Forward Surge Current Unidirectional Only（Note 4）
IFSM
Note:
1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
2. High Temperature Solder Exemption...
