SMGJ80CA Datasheet | Micro Commercial Components

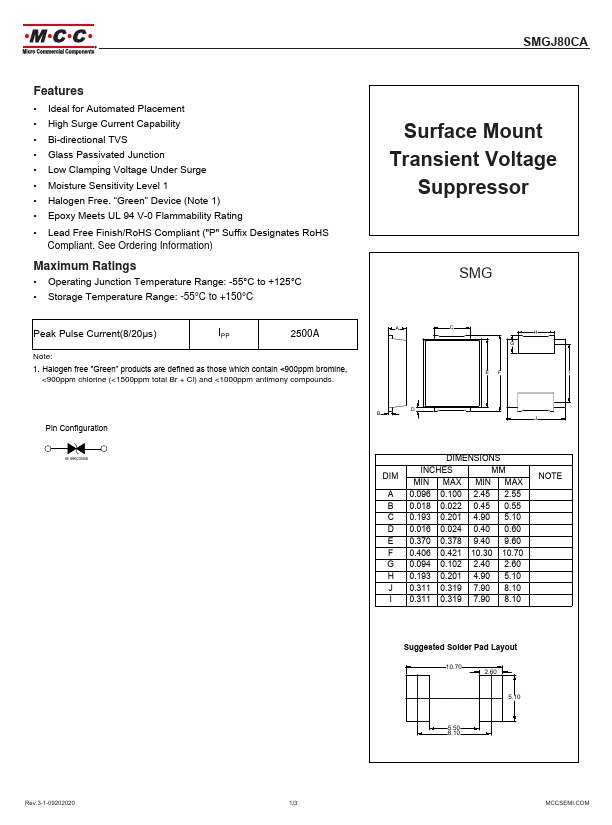

Features - Ideal for Automated Placement - High Surge Current Capability - Bi-directional TVS - Glass Passivated Junction - Low Clamping Voltage Under Surge - Moisture Sensitivity Level 1 - Halogen Free. “Green” Device (Note 1) - Epoxy Meets UL 94 V-0 Flammability Rating - Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information) Maximum Ratings - Operating Junction Temperature Range: -55°C to +125°C - Storage Temperature Range: -55°C to +150°C Peak Pulse Current(8/20μs) 2500A Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. Pin Configuration Bi-directional Surface Mount Transient Voltage Suppressor DIMENSIONS INCHES MIN MAX MM MIN MAX A 0.096 0.100 2.45 2.55 B 0.018 0.022 0.45 0.55 C 0.193 0.201 4.90 5.10 D 0.016 0.024 0.40 0.60 E 0.370 0.378 9.40 9.60 F 0.406 0.421 10.30 10.70 G 0.094 0.102 2.40 2.60 H 0.193 0.201 4.90 5.10 J 0.311 0.319 7.90 8.10 I 0.311 0.319 7.90 8.10 NOTE Suggested Solder Pad Layout 10.70 2.60...
