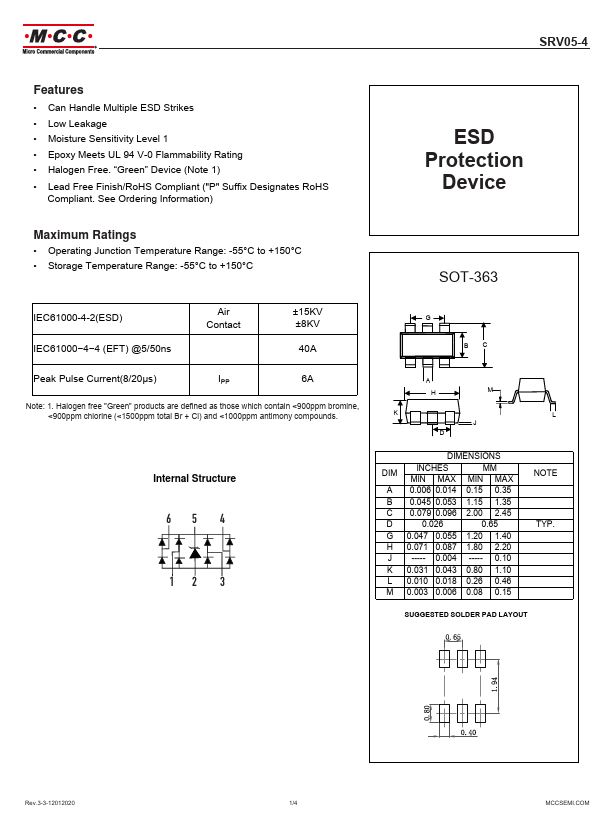

SRV05-4
Features
- Can Handle Multiple ESD Strikes
- Low Leakage
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free. “Green” Device (Note 1)
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
ESD Protection
Device
Maximum Ratings
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
SOT-363
IEC61000-4-2(ESD) IEC61000- 4- 4 (EFT) @5/50ns
Air Contact
±15KV ±8KV
40A
G BC
Peak Pulse Current(8/20μs)
6A
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
Internal Structure
65 4
12 3
DIMENSIONS
INCHES MIN MAX
MM MIN MAX
A 0.006 0.014 0.15 0.35
B 0.045 0.053 1.15 1.35
C 0.079 0.096 2.00...
