SS34 Datasheet SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Manufacturer: MIC

Download the SS34 datasheet PDF. This datasheet also includes the SS32 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

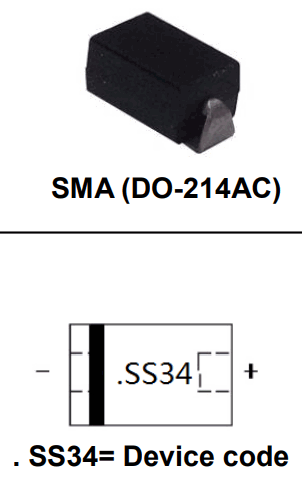

SS34 surface mount schottky barrier rectifier by MIC - Datasheet Preview — Note: The manufacturer provides a single datasheet file (SS32-MIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	SS34
Manufacturer	MIC
File Size	60.39 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Download	SS34 Download (PDF)

Overview

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER SS32 THRU SS310 VOLTAGE RANGE CURRENT 20 to 40 Volts 3.

Key Features

Low profile surface mount package.
Built-in strain relief.
High switching speed.
Low voltage drop, high efficiency.
For use in low voltage high frequency inverters, Free willing, and polarity protection.
