MLSM 1SS196
Switching Diodes
| Part No. | 1SS196 |
|---|---|
| Datasheet | 1SS196 Download |
| Manufacturer |  MLSM |
| Description | Switching Diodes |
| Buy | Stock & Price |
FEATURES

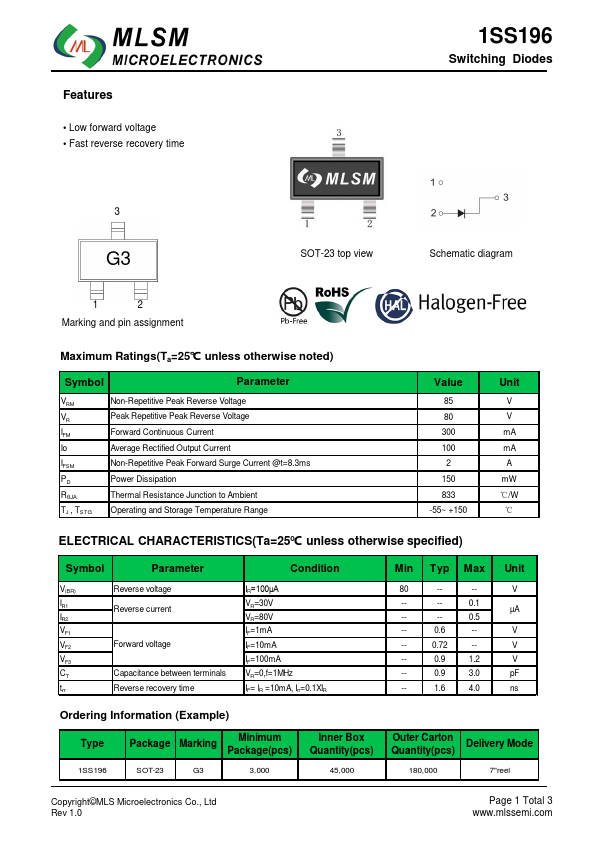

● Low forward voltage● Fast reverse recovery time 1SS196 Switching Diodes 3 G3 SOT-23 top view Schematic diagram 1 2 Marking and pin assignment
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol Parameter VRM VR IFM Io IFSM PD RθJA TJ , TSTG Non-Repetitive Peak Reverse Voltage Peak Repetitive Peak Reverse Voltage Forward Continuous Current Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range Value 85 80 300 100 2 150 833 -55~ +150 Unit V V mA mA A mW ℃/W ℃ELECTRICAL CHARACTERISTICS
(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR) Reverse voltage IR1 Reverse current IR2 VF1 VF2 Forward voltage VF3 CT Capacitance between terminals trr Reverse recovery time Condition IR=100μA VR=30V VR=80V IF=1mA IF=10mA IF=100mA VR=0,f=1MHz IF= IR =10mA, Irr=0.1XIR Min 80 -------- Typ ---0.6 0.72 0.9 0.9 1.6 Max -0.1 0.5 --1.2 3.0 4.0 Unit V µA V V V pF ns...
