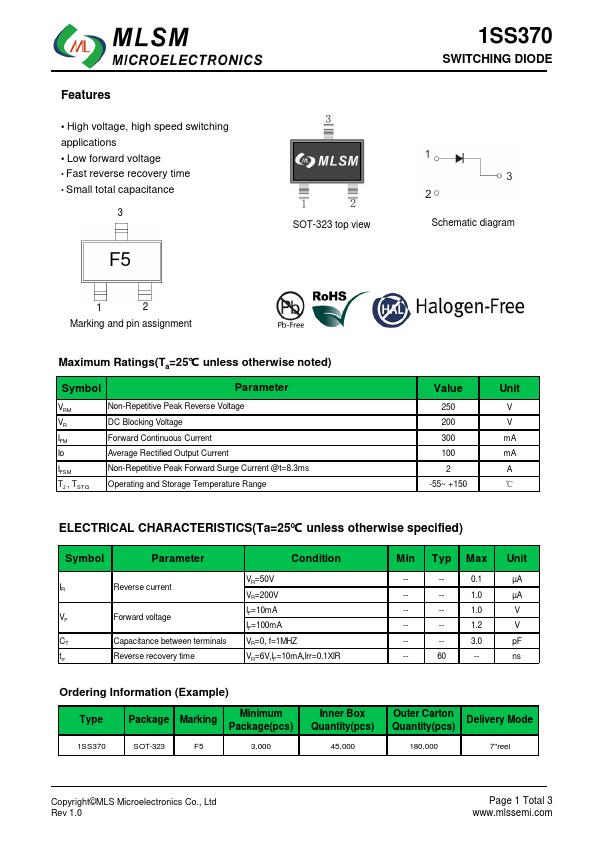

1SS370
1SS370 is manufactured by MLS Microelectronics.
Features
- High voltage, high speed switching applications
- Low forward voltage
- Fast reverse recovery time
- Small total capacitance
F5
SWITCHING DIODE
SOT-323 top view
Schematic diagram
Marking and pin assignment
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
VRM VR IFM Io IFSM TJ , TSTG
Non-Repetitive Peak Reverse Voltage DC Blocking Voltage Forward Continuous Current Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @t=8.3ms Operating and Storage Temperature Range
Value
250 200 300 100
2 -55~ +150
Unit
V V mA mA A ℃
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Symbol
Parameter
Reverse...
