MLSM 2SC4177
NPN Transistor
| Part No. | 2SC4177 |
|---|---|
| Datasheet | 2SC4177 Download |
| Manufacturer |  MLSM |
| Description | NPN Transistor |
| Buy | Stock & Price |
FEATURES
● High DC Current Gain● Complementary to 2SA1611
● High Voltage
APPLICATIONS

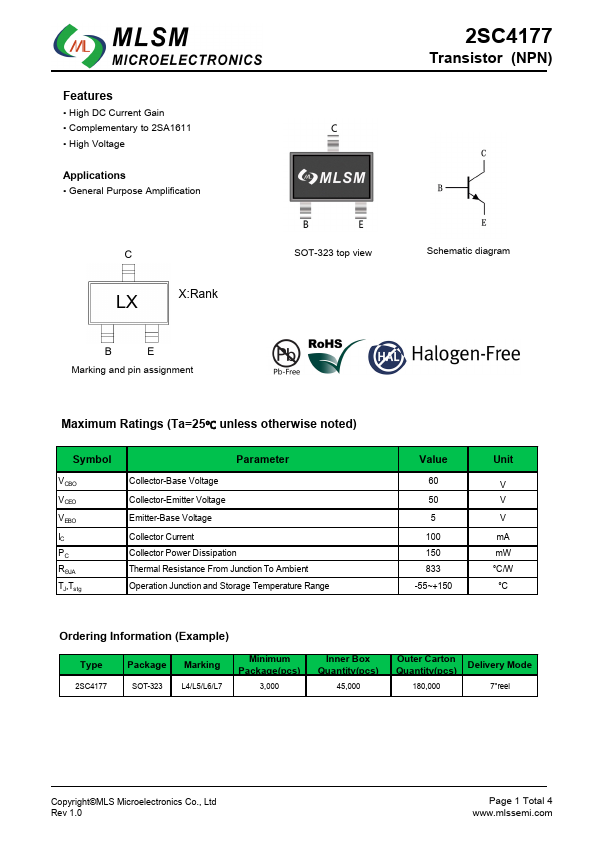

● General Purpose Amplification 2SC4177 Transistor (NPN) C LX X:Rank B E Marking and pin assignment SOT-323 top view Schematic diagramMAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value 60 50 5 100 150 833 -55~+150 Unit V V V mA mW °C/W °C Ordering Information (Example) Type 2SC4177 Package SOT-323 Marking L4/L5/L6/L7 Minimum Package(pcs) 3,000 Inner Box Quantity(pcs) 45,000 Outer Carton Quantity(pcs) 180,000 Delivery Mode 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 4 2SC4177 Transistor (NPN)ELECTRICAL CHARACTERISTICS

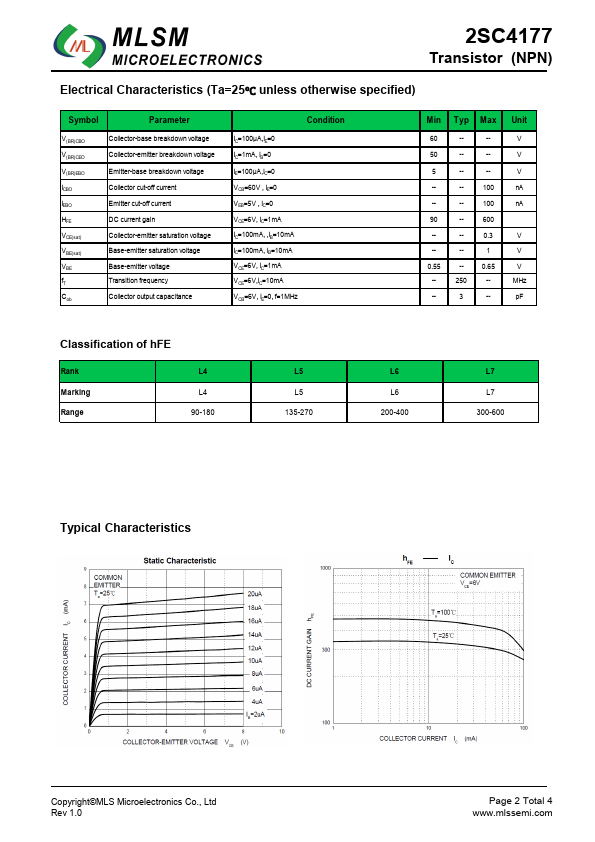

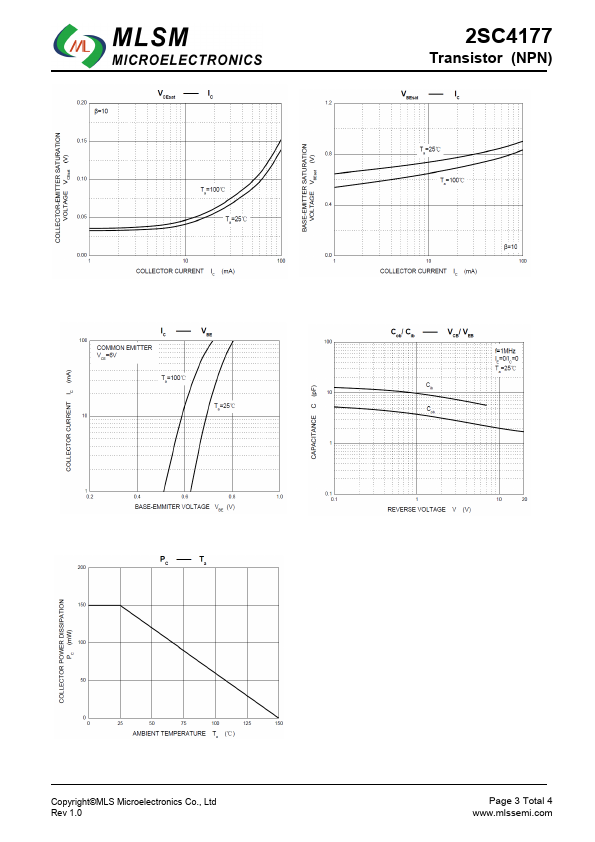

(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO HFE VCE(sat...
