Features • High Voltage and Current • High DC Current Gain • Complementary to 2SA1832 • Small Package Applications • General Purpose Amplification C LX X:Rank B E Marking...
View more extracted text

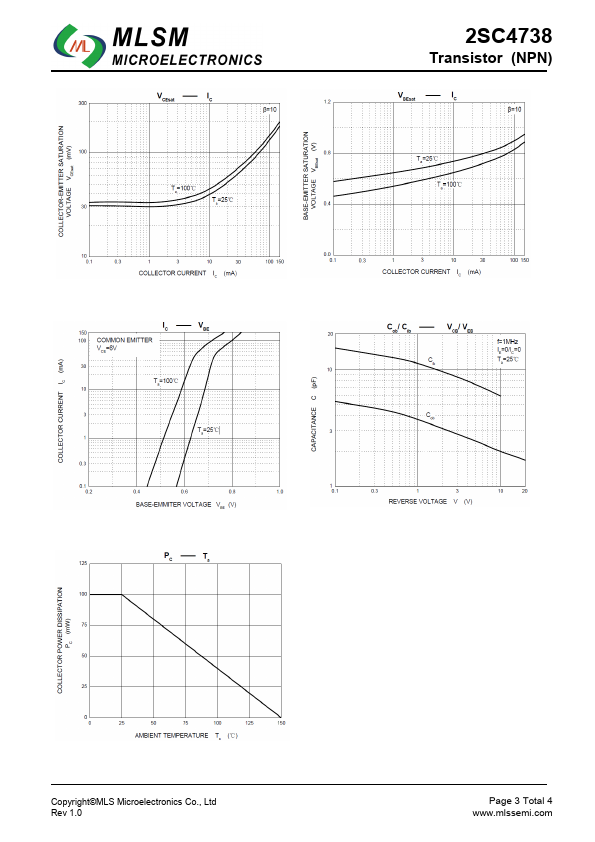

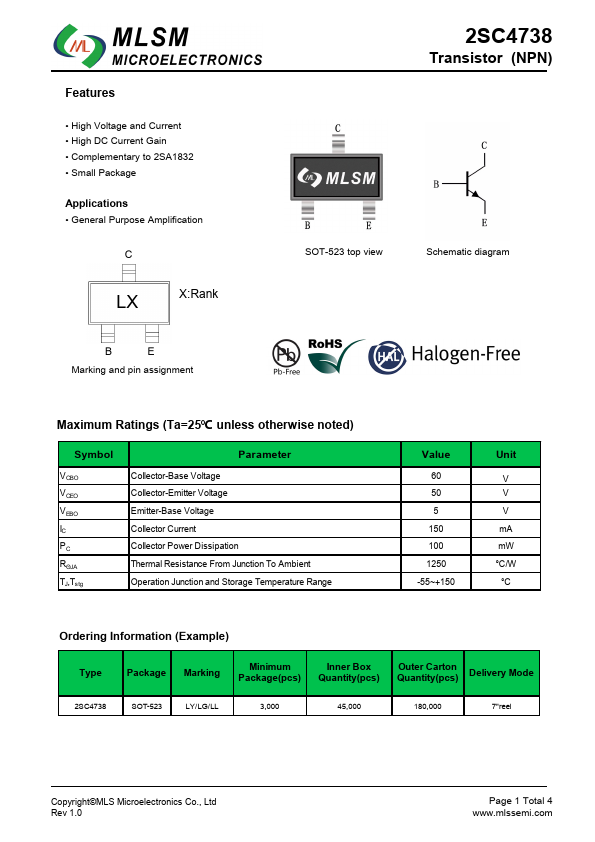

e Applications • General Purpose Amplification C LX X:Rank B E Marking and pin assignment 2SC4738 Transistor (NPN) SOT-523 top view Schematic diagram Maximum Ratings (Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value 60 50 5 150 100 1250 -55~+150 Unit V V V mA mW °C/W °C Ordering Information (Example) Type Package Marking Minimum Package(pcs) Inner Box Quantity(pcs) Outer Carton Q
