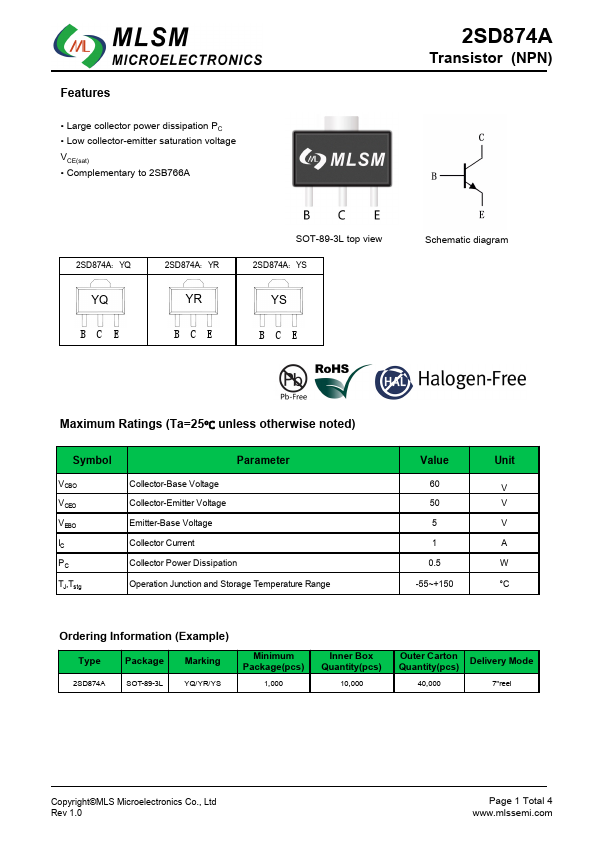

2SD874A
Features
- Large collector power dissipation PC
- Low collector-emitter saturation voltage VCE(sat)
- plementary to 2SB766A
Transistor (NPN)
X:Rank
2SD874A：YQ
YQ BC E
2SD874A：YR
YR BCE
SOT-89-3L top view
2SD874A：YS
YS BCE
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range
Value
60 50 5 1 0.5 -55~+150
Unit
V V V A W °C
Ordering Information (Example)
Type
Package Marking
SOT-89-3L
YQ/YR/YS
Minimum Package(pcs)
1,000
Inner Box Quantity(pcs)
10,000
Outer Carton Quantity(pcs)
Delivery Mode
40,000
7"reel
Copyright©MLS Microelectronics Co., Ltd Rev 1.0
Page 1 Total 4 .mlssemi.

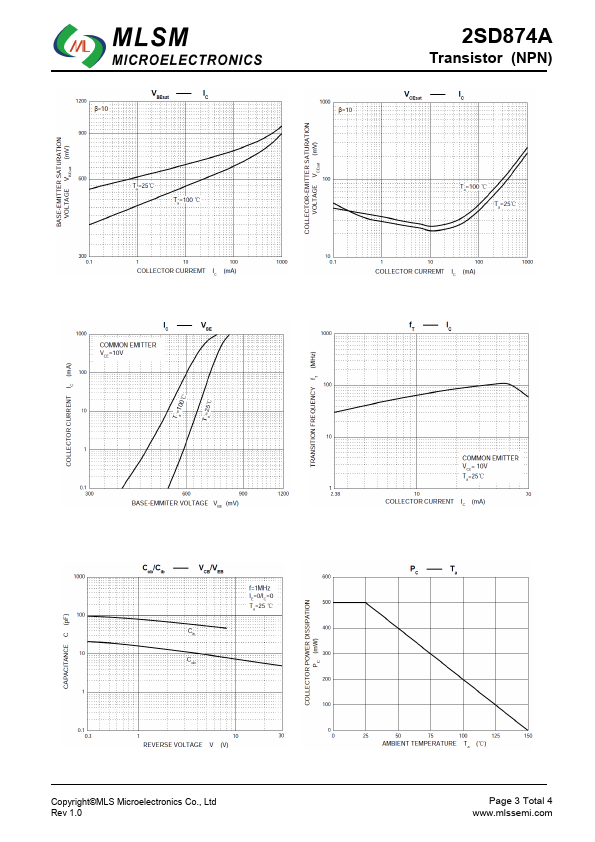

Transistor (NPN)

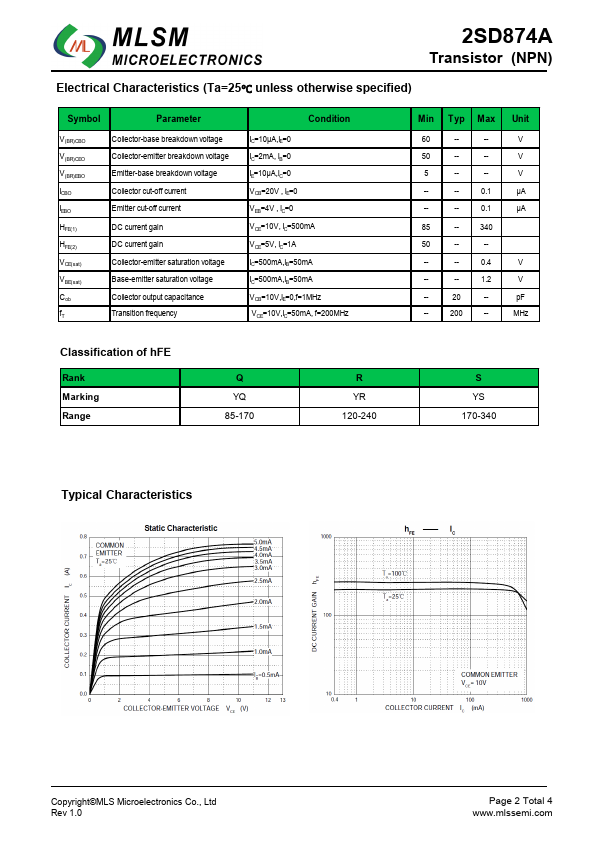

Electrical Characteristics (Ta=25℃ unless otherwise...
