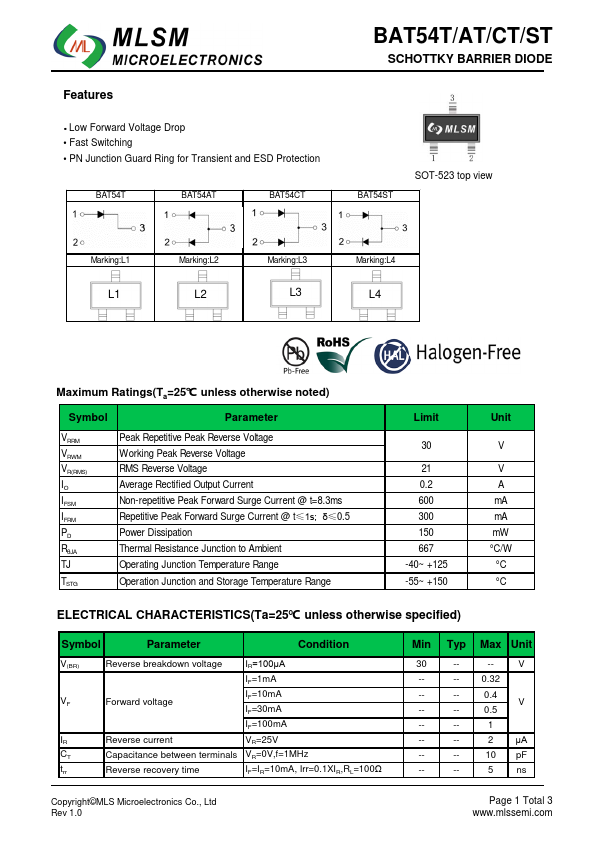

Features - Low Forward Voltage Drop - Fast Switching - PN Junction Guard Ring for Transient and ESD Protection BAT54T BAT54CT BAT54T/AT/CT/ST SCHOTTKY BARRIER DIODE S1 D2 D1 BAT54ST SOT-523 top view Marking:L1 L1 Marking:L2 L2 Marking:L3 L3 Marking:L4 L4 Maximum Ratings(Ta=25℃ unless otherwise noted) Symbol Parameter VRRM VRWM VR(RMS) IO IFSM IFRM PD RθJA TJ TSTG Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage RMS Reverse Voltage Average Rectified Output Current Non-repetitive Peak Forward Surge Current @ t=8.3ms Repetitive Peak Forward Surge Current @ t≤1s; δ≤0.5 Power Dissipation Thermal Resistance Junction to Ambient Operating Junction Temperature Range Operation Junction and Storage Temperature Range Limit 21 0.2 600 300 150 667 -40~ +125 -55~ +150 Unit V A m A m A m W °C/W °C °C ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Symbol Parameter Condition V(BR) IR CT trr Reverse breakdown voltage IR=100μA...
