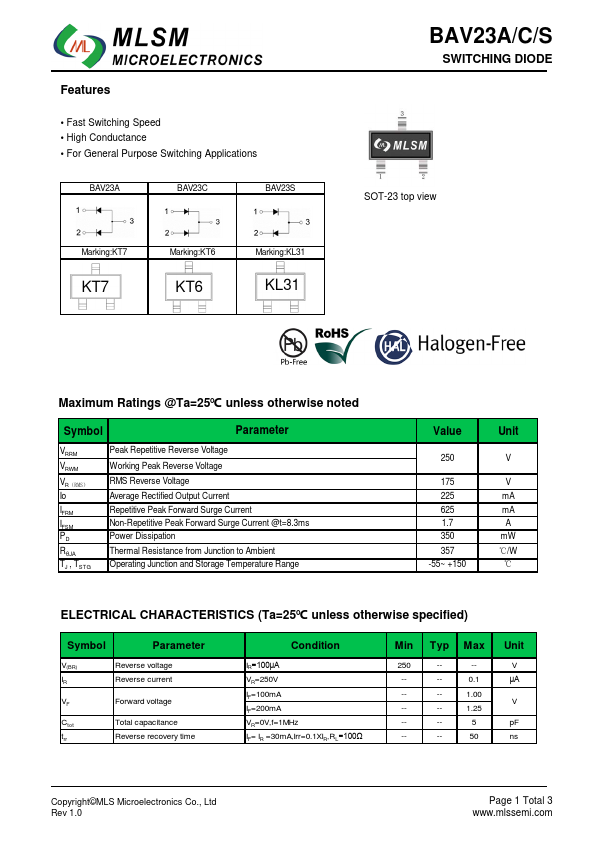

BAV23S
Features
- Fast Switching Speed
- High Conductance
- For General Purpose Switching Applications
BAV23A
BAV23C
Marking:KT7
KT7
Marking:KT6
KT6
Marking:KL31
KL31
BAV23A/C/S
SWITCHING DIODE
SOT-23 top view
Maximum Ratings @Ta=25℃ unless otherwise noted
Symbol
Parameter
VRRM
VRWM
VR（RMS） Io
IFRM IFSM PD
RθJA TJ , TSTG
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage RMS Reverse Voltage Average Rectified Output Current Repetitive Peak Forward Surge Current Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance from Junction to Ambient Operating Junction and Storage Temperature Range
Value
175 225 625 1.7 350 357 -55~ +150
Unit
V m A m A A m W ℃/W ℃
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Symbol
Parameter
V(BR) IR
Reverse voltage Reverse current
Forward voltage
Ctot
Total capacitance trr
Reverse recovery...
