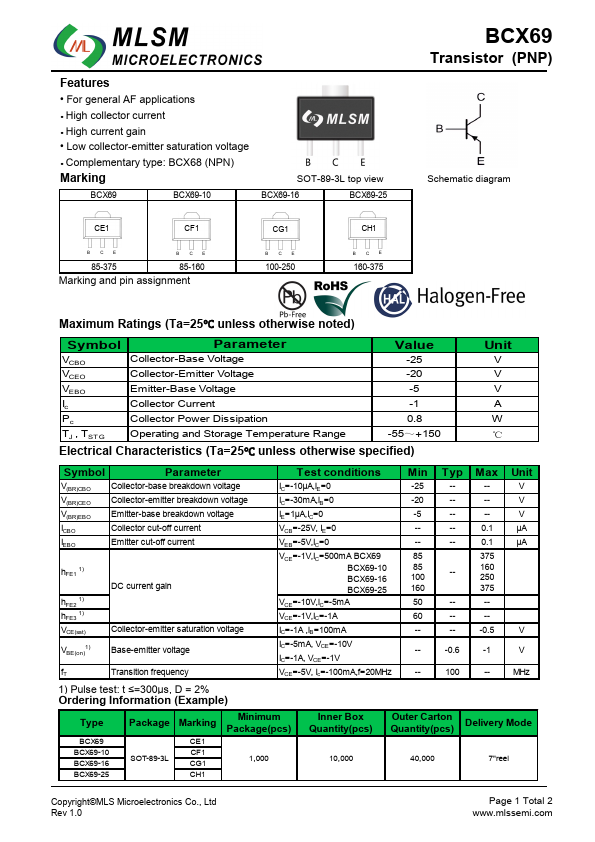

BCX69-10
Features
- For general AF applications
- High collector current
- High current gain
- Low collector-emitter saturation voltage
- plementary type: BCX68 (NPN)
Marking
BCX69
SOT-89-3L top view
BCX69-16
BCX69-25
CE1
CF1
B CE
B CE
85-375
85-160
Marking and pin assignment
CG1
B CE
100-250
CH1
B CE
160-375
BCX69
Transistor (PNP)
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
Parameter
Value
VCBO
Collector-Base Voltage
-25
VCEO
Collector-Emitter Voltage
-20
VEBO
Emitter-Base...
