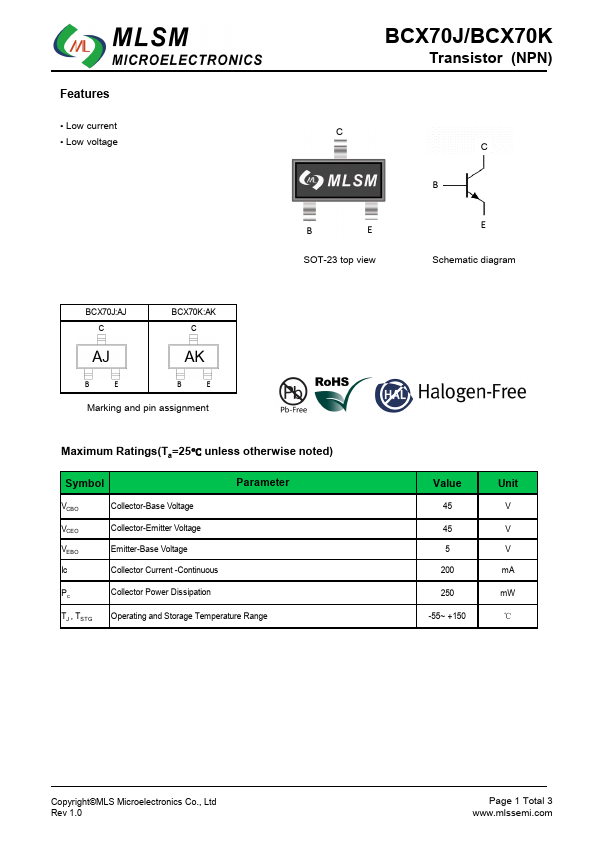

BCX70K
Features
- Low current
- Low voltage
BCX70J/BCX70K
Transistor (NPN)
SOT-23 top view
E Schematic diagram
BCX70J:AJ C
BCX70K:AK C
Marking and pin assignment
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO VCEO VEBO Ic
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous
Pc
Collector Power Dissipation
TJ , TSTG Operating and Storage Temperature Range
Value
45 45 5 200 250 -55~ +150
Unit
V V V m A m W ℃
Copyright©MLS Microelectronics Co., Ltd Rev 1.0
Page 1 Total 3 .mlssemi.
BCX70J/BCX70K
Transistor (NPN)
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Symbol
Parameter
Test...
