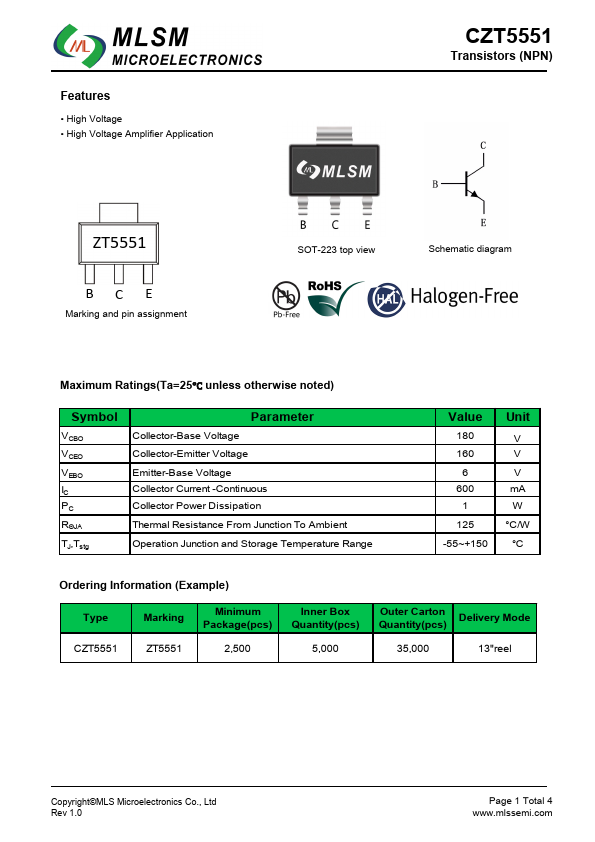

CZT5551
Features
- High Voltage
- High Voltage Amplifier Application
Transistors (NPN)
D2
ZT5551
Marking and pin assignment
SOT-223 top view
Schematic diagram
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC RΘJA TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Value
180 160
6 600
1 125 -55~+150
Unit
V V V m A W °C/W °C
Ordering Information (Example)
Type
Marking
Minimum Package(pcs)
ZT5551
2,500
Inner Box Quantity(pcs)
5,000
Outer Carton Quantity(pcs)
Delivery Mode
35,000
13"reel
Copyright©MLS Microelectronics Co., Ltd Rev 1.0
Page 1 Total 4 .mlssemi.

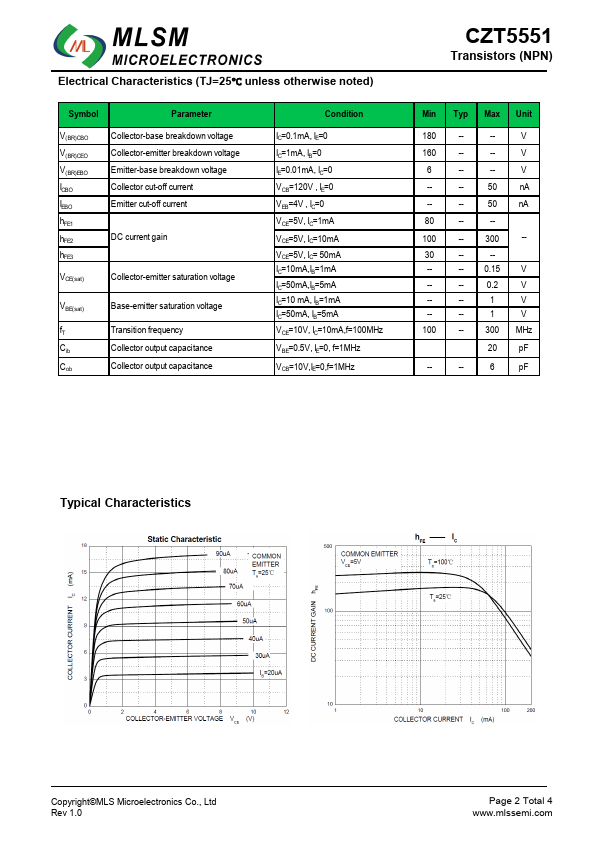

Electrical Characteristics (TJ=25℃ unless otherwise noted)
Symbol
Parameter
V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO h FE1 h FE2 h FE3
Collector-base breakdown voltage Collector-emitter...
