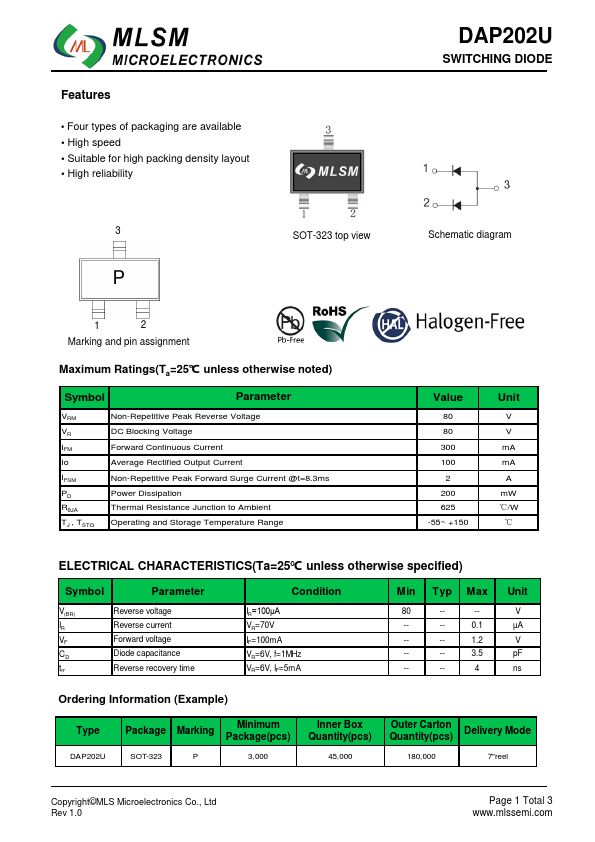

DAP202U
Features
- Four types of packaging are available
- High speed
- Suitable for high packing density layout
- High reliability
SWITCHING DIODE
SOT-323 top view
Schematic diagram
Marking and pin assignment
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
VRM VR IFM Io IFSM PD RθJA TJ , TSTG
Non-Repetitive Peak Reverse Voltage DC Blocking Voltage Forward Continuous Current Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range
Value
80 80 300 100 2 200 625 -55~ +150
Unit
V V m A m A A m W ℃/W ℃
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Symbol
Parameter
V(BR)
Reverse voltage
Reverse current
Forward voltage
Diode capacitance trr
Reverse recovery time
Condition
IR=100μA VR=70V IF=100m A VR=6V, f=1MHz VR=6V, IF=5m A
Min
80 -----
Typ...
