FZT692B
FZT692B is NPN Transistors manufactured by MLS Microelectronics.
Features
- High Voltage
- Low saturation voltages
Transistors (NPN)
D2
ZT692B

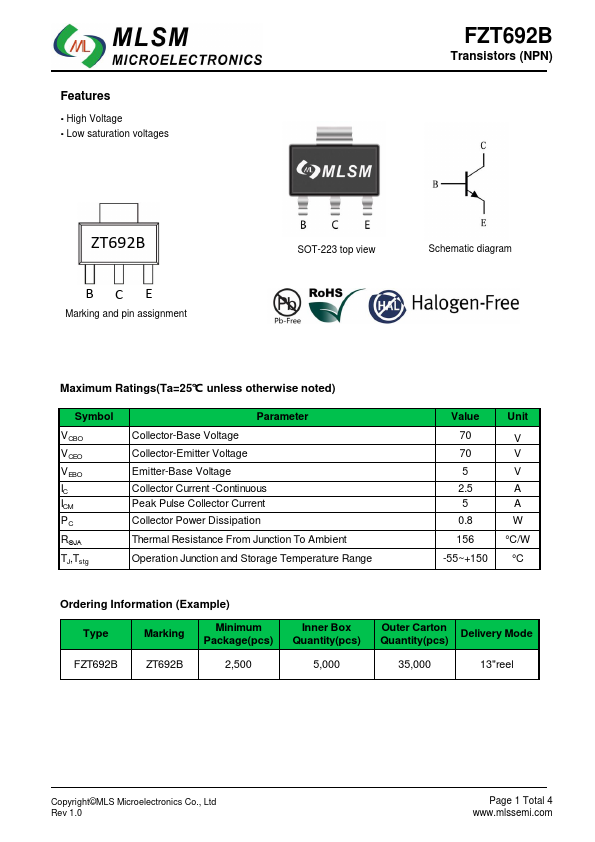

Marking and pin assignment
SOT-223 top view
Schematic diagram
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC ICM PC RΘJA TJ,Tstg
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Peak Pulse Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Value 70 70 5 2.5 5 0.8 156
-55~+150
Unit
V V V A A W °C/W °C
Ordering Information (Example)
Type
Marking
Minimum Package(pcs)
ZT692B
2,500
Inner Box Quantity(pcs)
5,000...
