MLSM HT7518
The HT75XX series are highly accurate, LDO Voltage Regulators that are manufactSu1reD2d using CMOS technology and the input voltagDe1of HT75XX series is in Excess of 30V. The HT75XX features very fast response against line voltage transient and load current transient, and ensures no overshoot voltage during the HT75XX start up and short circuit recovery. The HT75XX features integrated short-circuit shutdown protection.| Part No. | HT7518 |
|---|---|
| Datasheet | HT7518 Download |
| Manufacturer |  MLSM |
| Description | 150mA Low Power Consumption LDO |
| Buy | Stock & Price |
FEATURES
● Low Quiescent Current：2.5uA● High Input Voltage Rating：Up to 30V
● Low voltage drop
● Fixed Output Voltages： 1.8V, 2.5V,3.0V, 3.3V,3.6V, 4.0V,4.4V and 5.0V
● High-accuracy Output Voltage: ±2%
● Fast Transient Response
● Over current protection Application
● Battery-powered equipment
● Smoke detector and sensor
● Micro controller
APPLICATIONS
● Home Appliance HT75XX 150mA Low Power Consumption LDODESCRIPTION

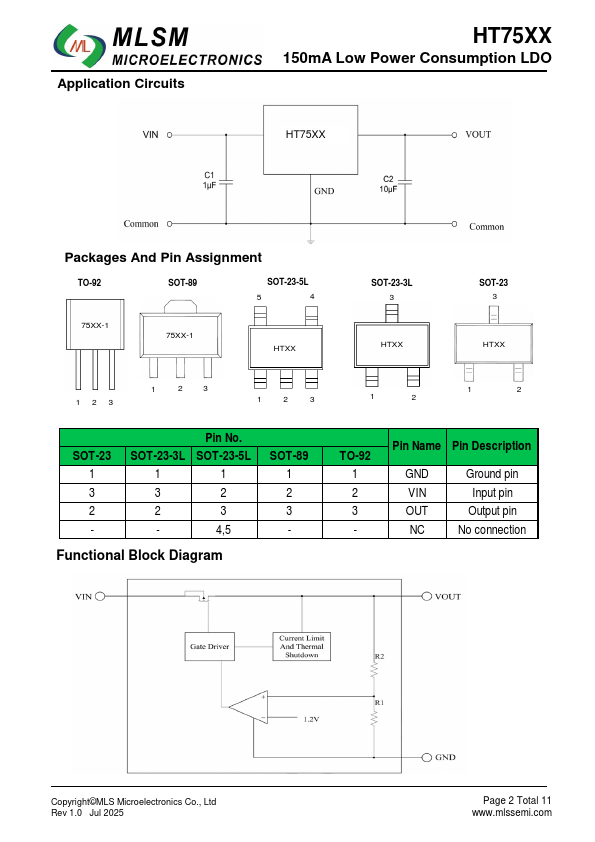

The HT75XX is available with fixed output voltages of 1.8V, 2.5V, 3.0V, 3.3V,3.6V,4.0V,4.4V and 5.0V. Type Output voltage HT7518 1.8V HT7525 2.5V HT7530 3.0V HT7533 3.3V HT7536 3.6V HT7540 4.0V Note:H“TX7X54”4Represents the o4u.t4pVut voltage HT7550 5.0V Package SOT-23 SOT-23-3L SOT-23-5L SOT-89 TO-92 Marking SOT-23 SOT-23-3L SOT-23-5L HTXX SOT-89 TO-92 75XX-1 Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Jul 2025 Page 1 Total 11 Application Circuits HT75XX 150mA Low Power Consumption LDO HT75XX Packages And Pin Assignment TO-92 SOT-89 SOT-23-5L 5 4 75XX-1 75XX-1 HTXX SOT-23-3L 3 HTXX SOT-23 3 HTXX 123 1 23 1 2 3 1 2 1 2 SOT-23 1 3 2 - Pin No.
