HT7525 Overview
Key Specifications
Package: LSSOP
Length: 2.9 mm
Width: 1.6 mm
Max Operating Temp: 85 °C

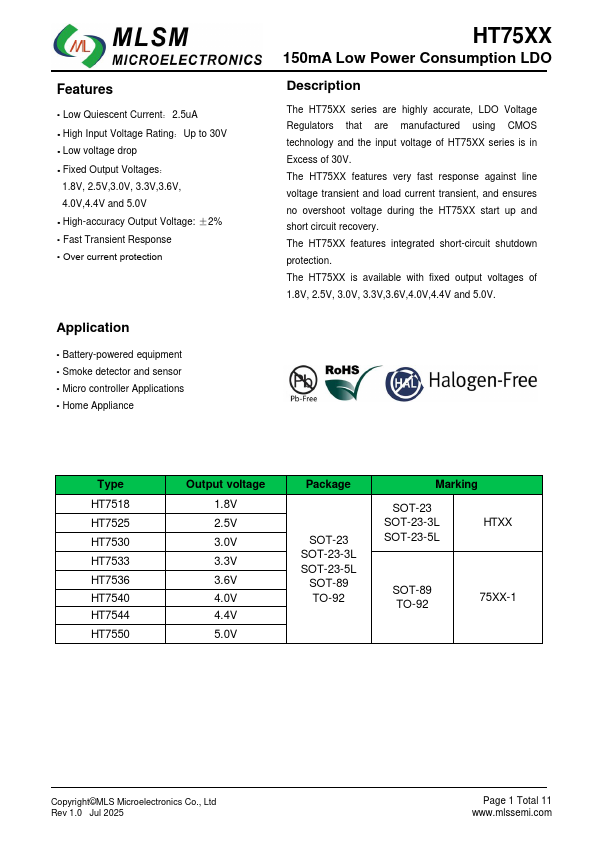

Description
The HT75XX series are highly accurate, LDO Voltage Regulators that are manufactSu1reD2d using CMOS technology and the input voltagDe1of HT75XX series is in Excess of 30V. The HT75XX features very fast response against line voltage transient and load current transient, and ensures no overshoot voltage during the HT75XX start up and short circuit recovery.
Key Features
- Low Quiescent Current：2.5uA
- High Input Voltage Rating：Up to 30V
- Low voltage drop
- High-accuracy Output Voltage: ±2%
- Fast Transient Response
- Over current protection
