HT7536 Datasheet | MLS Microelectronics

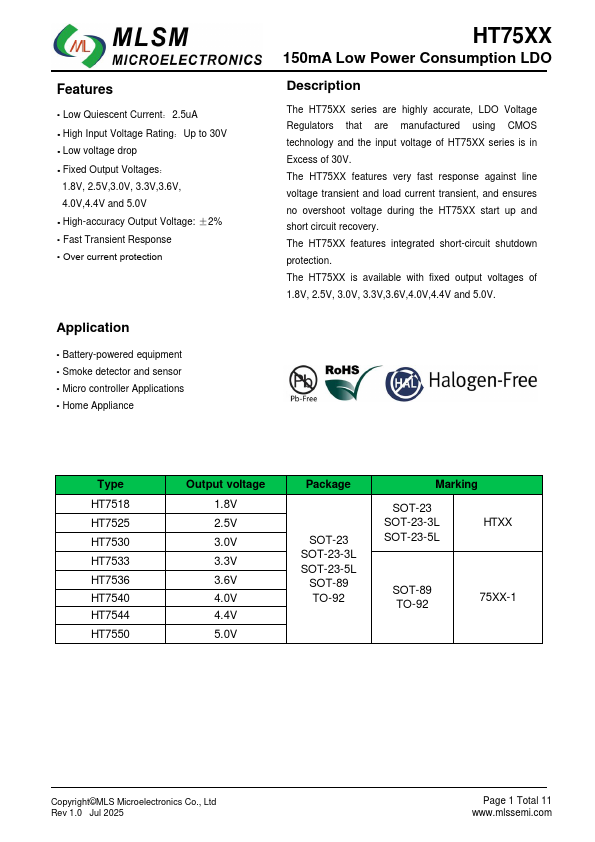

Features - Low Quiescent Current：2.5u A - High Input Voltage Rating：Up to 30V - Low voltage drop - Fixed Output Voltages： 1.8V, 2.5V,3.0V, 3.3V,3.6V, 4.0V,4.4V and 5.0V - High-accuracy Output Voltage: ±2% - Fast Transient Response - Over current protection Application - Battery-powered equipment - Smoke detector and sensor - Micro controller Applications - Home Appliance HT75XX 150m A Low Power Consumption LDO Description The HT75XX series are highly accurate, LDO Voltage Regulators that are manufact Su1re D2d using CMOS technology and the input voltag De1of HT75XX series is in Excess of 30V. The HT75XX Features very fast response against line voltage transient and load current transient, and ensures no overshoot voltage during the HT75XX start up and short circuit recovery. The HT75XX Features integrated short-circuit shutdown protection. The HT75XX is available with fixed output voltages of 1.8V, 2.5V, 3.0V, 3.3V,3.6V,4.0V,4.4V and 5.0V. Type Output voltage HT7518 1.8V HT7525 2.5V HT7530 3.0V HT7533 3.3V 3.6V HT7540...
