MLSM KTA1663
PNP Transistor
| Part No. | KTA1663 |
|---|---|
| Datasheet | KTA1663 Download |
| Manufacturer |  MLSM |
| Description | PNP Transistor |
| Buy | Stock & Price |
FEATURES

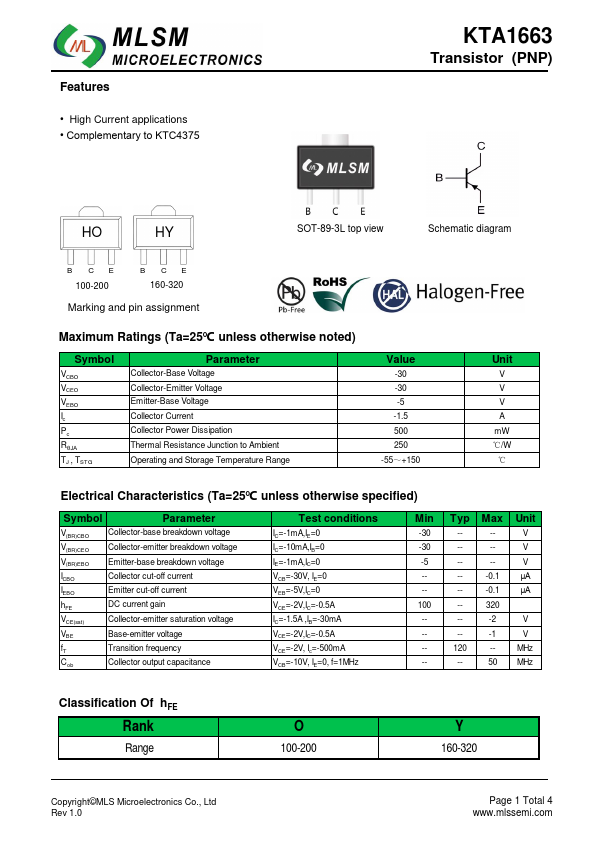

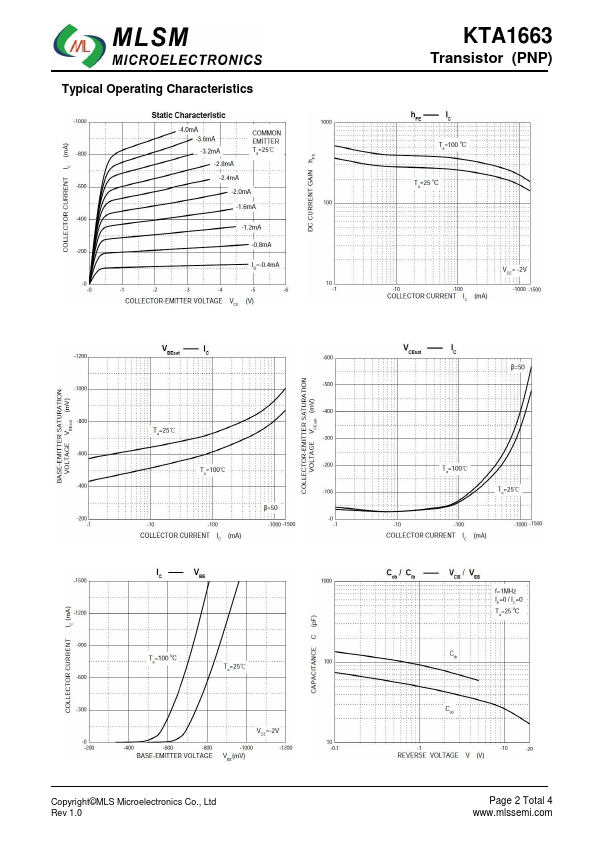

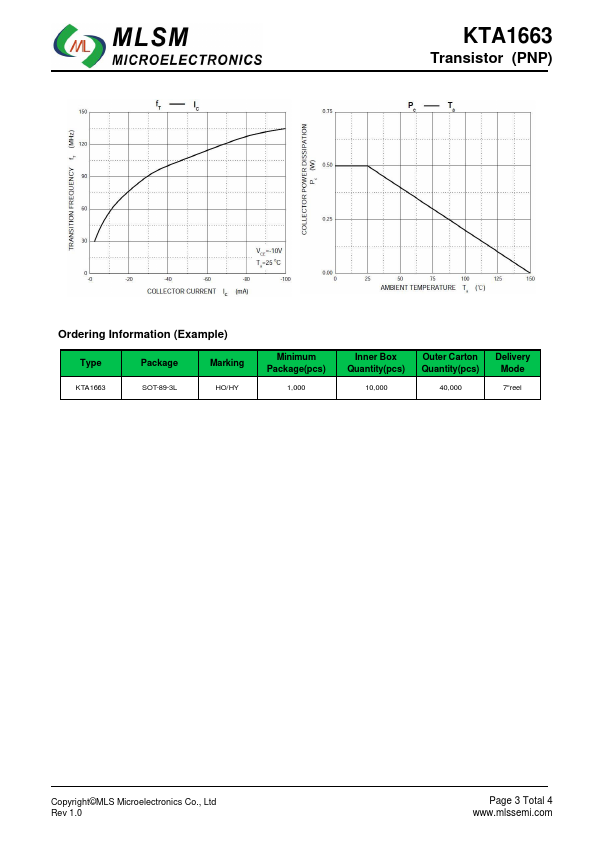

● High Current applications● Complementary to KTC4375 KTA1663 Transistor (PNP) HO HY SOT-89-3L top view Schematic diagram B CE 100-200 B CE 160-320 Marking and pin assignment
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO Ic Pc RθJA TJ , TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range Value -30 -30 -5 -1.5 500 250 -55～+150 Unit V V V A mW ℃/W ℃ELECTRICAL CHARACTERISTICS
(Ta=25℃ unless otherwise specified) Symbol Parameter V(BR)CBO V(BR)CEO Collector-base breakdown voltage Collector-emitter breakdown voltage V(BR)EBO Emitter-base breakdown voltage ICBO Collector cut-off current IEBO Emitter cut-off current hFE DC current gain VCE(sat) Collector-emitter saturation voltage VBE Base-emitter voltage fT Transition frequency Cob Collector output capacitance Test conditions IC=-1mA,IE=0 IC=-10mA,IB=0...
