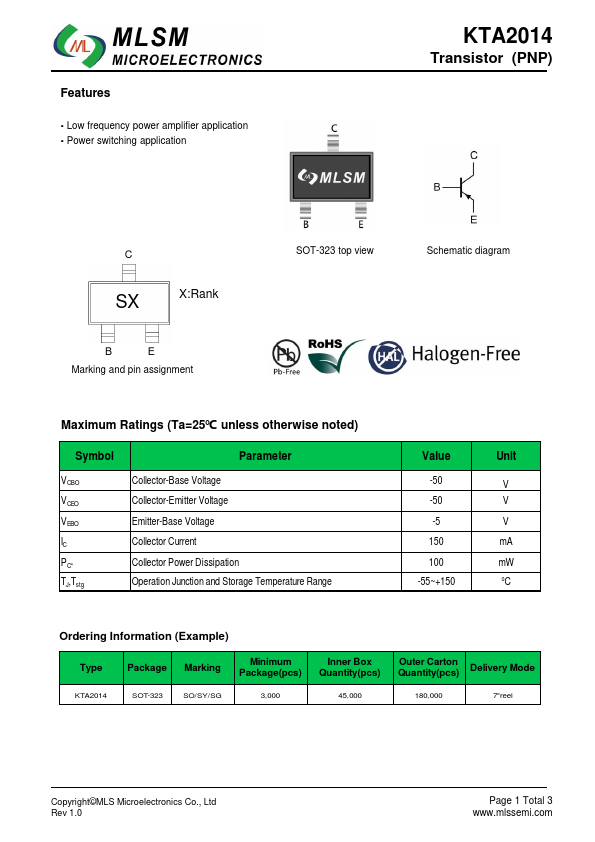

Datasheet Summary
Features
- Low frequency power amplifier application
- Power switching application
Transistor (PNP)
X:Rank
Marking and pin assignment
SOT-323 top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO VCEO VEBO IC PC- TJ,Tstg
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range
Value
Unit
-50
-50
-5
150 mA
100 mW
-55~+150
°C
Ordering Information (Example)
Type
Package
Marking
Minimum Package(pcs)
Inner Box Quantity(pcs)
Outer Carton Quantity(pcs)
Delivery...
