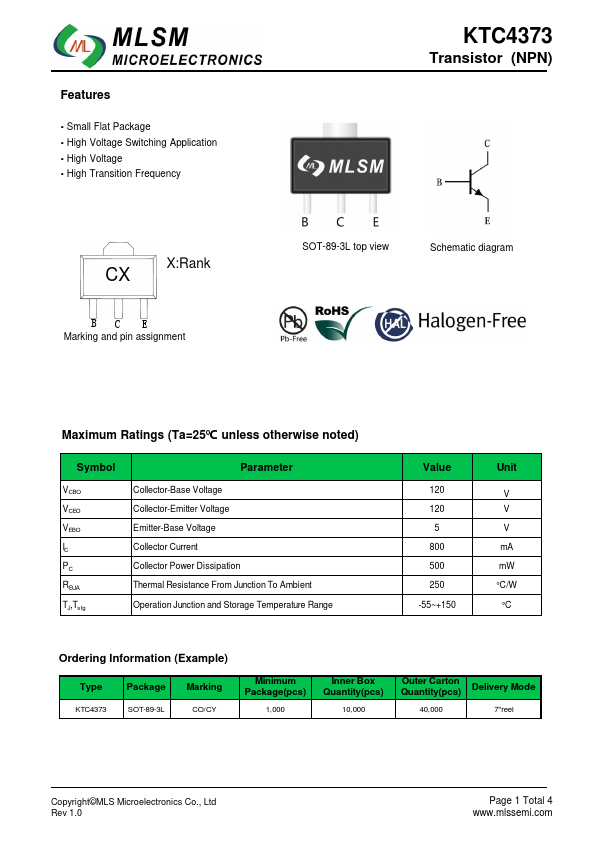

Datasheet Summary
Features
- Small Flat Package
- High Voltage Switching Application
- High Voltage
- High Transition Frequency
X:Rank
BC E
Marking and pin assignment
Transistor (NPN)
X:Rank
SOT-89-3L top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
VCBO VCEO VEBO IC PC RΘJA TJ,Tstg
Parameter
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range
Value
120 120
5 800 500 250 -55~+150
Unit
V V V mA mW °C/W °C
Ordering Information (Example)
Type
Package
SOT-89-3L
Marking
CO/CY
Minimum...
