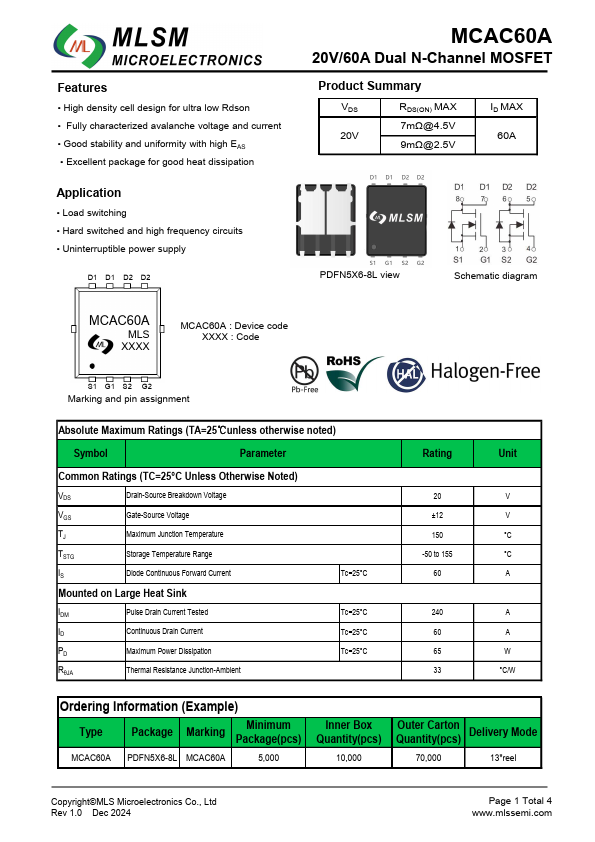

MCAC60A
MCAC60A is 20V/60A Dual N-Channel MOSFET manufactured by MLS Microelectronics.
Features
- High density cell design for ultra low Rdson
- Fully characterized avalanche voltage and current
- Good stability and uniformity with high EAS
- Excellent package for good heat dissipation
Application
- Load switching
- Hard switched and high frequency circuits
- Uninterruptible power supply
D1 D1 D2 D2
20V/60A Dual N-Channel MOSFET
Product Summary
VDS 20V
RDS(ON) MAX 7mΩ@4S.15VD2 9mΩ@D12.5V
ID MAX 60A
PDFN5X6-8L view
Schematic diagram
MLS XXXX
MCAC60A : Device code XXXX : Code
S1 G1 S2 G2
Marking and pin...
