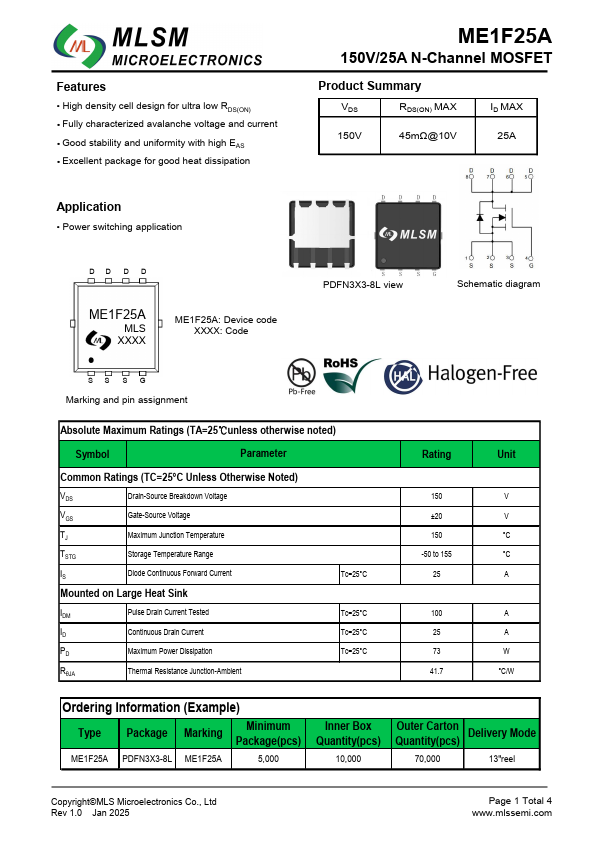

MLSM ME1F25A
N-Channel MOSFET
| Part No. | ME1F25A |
|---|---|
| Datasheet | ME1F25A Download |
| Manufacturer |  MLSM |
| Description | N-Channel MOSFET |
| Buy | Stock & Price |
FEATURES
● High density cell design for ultra low RDS(ON)● Fully characterized avalanche voltage and current
● Good stability and uniformity with high EAS
● Excellent package for good heat dissipation ME1F25A 150V/25A N-Channel MOSFET Product Summary VDS RDS(ON) MAX 150V 45mΩ@1S10DV2 D1 ID MAX 25A Application
● Power switching application DD D D ME1F25A MLS XXXX ME1F25A: Device code XXXX: Code PDFN3X3-8L view Schematic diagram SS S G Marking and pin assignment
ABSOLUTE MAXIMUM RATINGS
(TA=25℃unless otherwise noted) Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDS Drain-Source Breakdown Voltage VGS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat Sink IDM Pulse Drain Current Tested ID Continuous Drain Current PD Maximum Power Dissipation RθJA Thermal Resistance Junction-Ambient Tc=25°C 0 Tc=25°C Tc=25°C Tc=25°C Rating 150 ±20 150 -50 to 155 25 100 25 73 41.7 Unit V V °C °C A...
