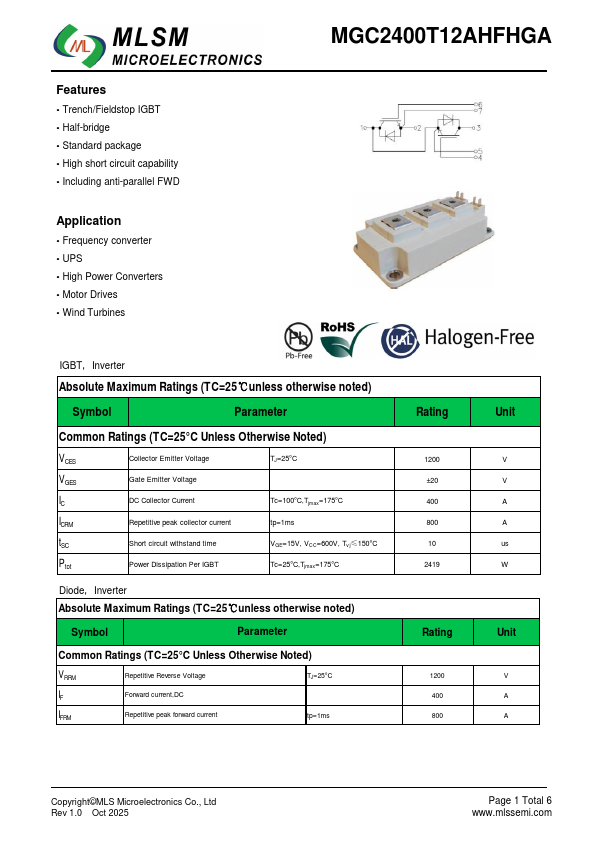

MGC2400T12AHFHGA
Features
- Trench/Fieldstop IGBT
- Half-bridge
- Standard package
- High short circuit capability
- Including anti-parallel FWD
Application
- Frequency converter
- UPS
- High Power Converters
- Motor Drives
- Wind Turbines
S1 D2 D1
IGBT，Inverter
Absolute Maximum Ratings (TC=25℃unless otherwise noted)
Symbol
Parameter mon Ratings (TC=25°C Unless Otherwise Noted)
VCES
Collector Emitter Voltage
TJ=25°C
VGES
Gate Emitter Voltage
DC Collector Current
Tc=100°C,Tjmax=175°C
ICRM
Repetitive peak collector current tp=1ms t SC
Short circuit withstand time
VGE=15V, VCC=600V, Tv j≤150°C
Ptot
Power Dissipation Per IGBT
Tc=25°C,Tjmax=175°C
Diode，Inverter
Absolute Maximum Ratings (TC=25℃unless otherwise noted)
Symbol
Parameter mon Ratings (TC=25°C Unless Otherwise Noted)
VRRM
Repetitive Reverse Voltage
TJ=25°C...
