MLSM MLS6219
The MLS6219 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin.| Part No. | MLS6219 |
|---|---|
| Datasheet | MLS6219 Download |
| Manufacturer |  MLSM |
| Description | High Speed Low Noise LDO |
| Buy | Stock & Price |

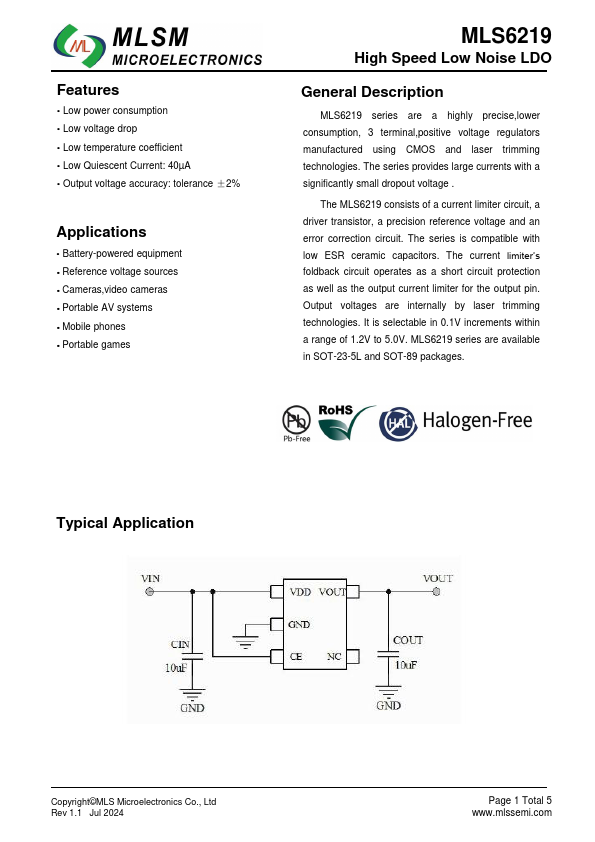

FEATURES
● Low power consumption● Low voltage drop
● Low temperature coefficient
● Low Quiescent Current: 40µA
● Output voltage accuracy: tolerance ±2%
APPLICATIONS
● Battery-powered equipment● Reference voltage sources
● Cameras,video cameras
● Portable AV systems
● Mobile phones
● Portable games MLS6219 High Speed Low Noise LDO
GENERAL DESCRIPTION

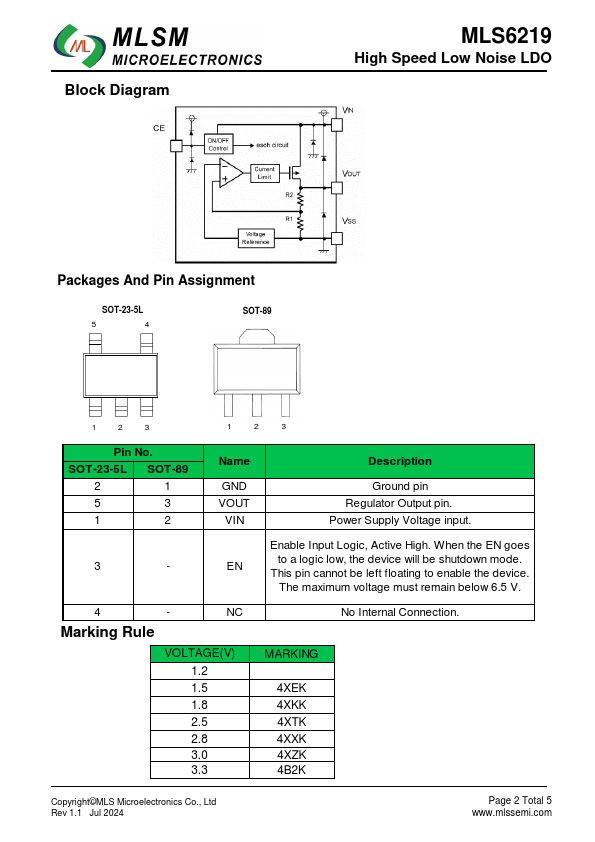

MLS6219 series are a highly precise,lower consumption, 3 terminal,positSiv1eD2voltage regulators D1 manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage . Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. MLS6219 series are available in SOT-23-5L and SOT-89 packages. Typical Application Copyright©MLS Microelectronics Co., Ltd Rev 1.1 Jul 2024 Page 1 Total 5 Block Diagram MLS6219 High Speed Low Noise LDO Packages And Pin Assignment SOT-23-5L 5 4 SOT-89 1 2 3 1 2 3 Pin No. SOT-23-5L SOT-89 2 1 5 3 1 2 Name GND VOUT VINDESCRIPTION
Ground pin Regulator Output pin.
