MLSM MLS7808B

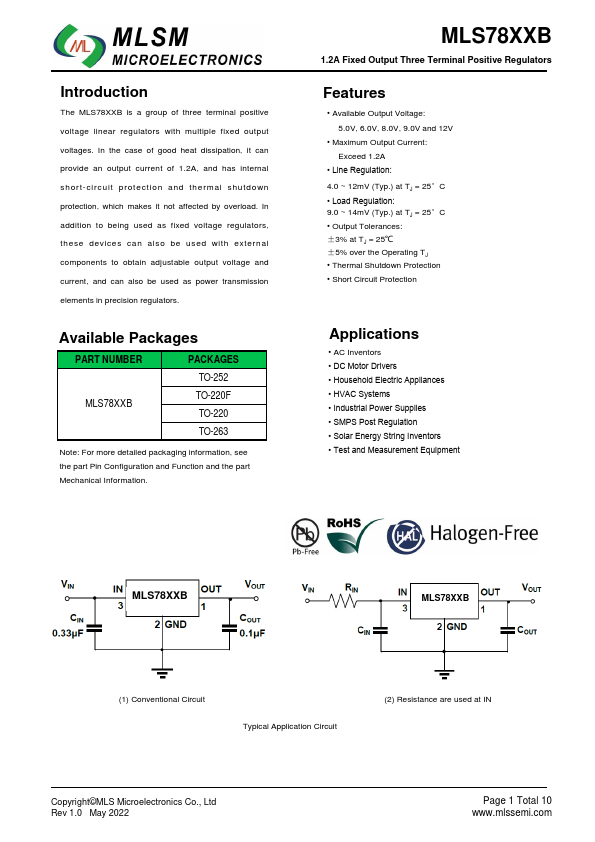

The MLS78XXB is a group of three terminal positive voltage linear regulators with multiple fixed output voltages.| Part No. | MLS7808B |
|---|---|
| Datasheet | MLS7808B Download |
| Manufacturer |  MLSM |
| Description | 1.2A Fixed Output Three Terminal Positive Regulators |
| Buy | Stock & Price |
FEATURES
● Available Output Voltage: 5.0V, 6.0V, 8.0V, 9.0V and S112VD2● Maximum Output Current:D1 Exceed 1.2A
● Line Regulation: 4.0 ~ 12mV (Typ.) at TJ = 25°C
● Load Regulation: 9.0 ~ 14mV (Typ.) at TJ = 25°C
● Output Tolerances: ±3% at TJ = 25℃ ±5% over the Operating TJ
● Thermal Shutdown Protection
● Short Circuit Protection
APPLICATIONS
● AC Inventors● DC Motor Drivers
● Household Electric Appliances
● HVAC Systems
● Industrial Power Supplies
● SMPS Post Regulation
● Solar Energy String Inventors

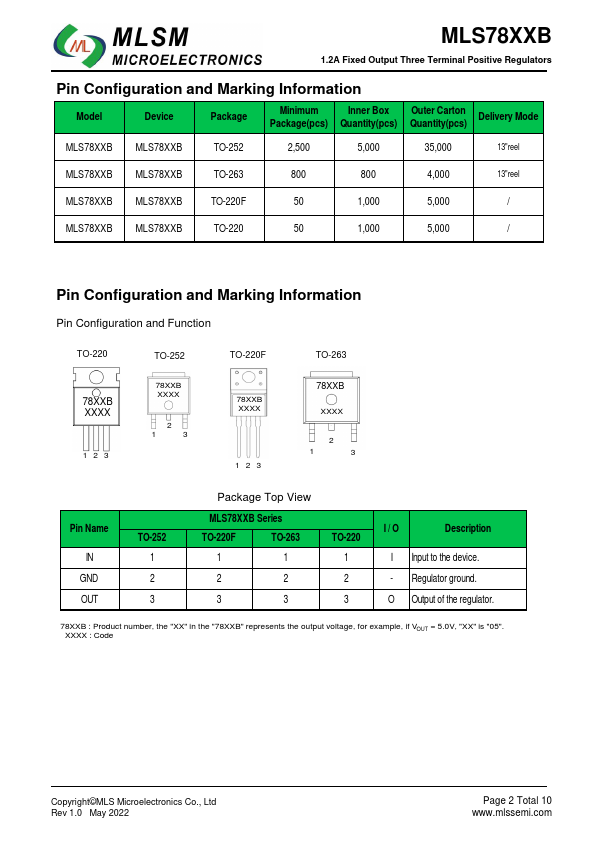

● Test and Measurement Equipment MLS78XXB MLMSL7S87X8XB Series (1) Conventional Circuit Typical Application Circuit (2) Resistance are used at IN Copyright©MLS Microelectronics Co., Ltd Rev 1.0 May 2022 Page 1 Total 10 MLS78XXB 1.2A Fixed Output Three Terminal Positive Regulators Pin Configuration and Marking Information Model Device Package Minimum Package(pcs) Inner Box Quantity(pcs) Outer Carton Quantity(pcs) Delivery Mode MLS78XXB MLS78XXB TO-252 2,500 5,000 35,000 13"reel MLS78XXB...
