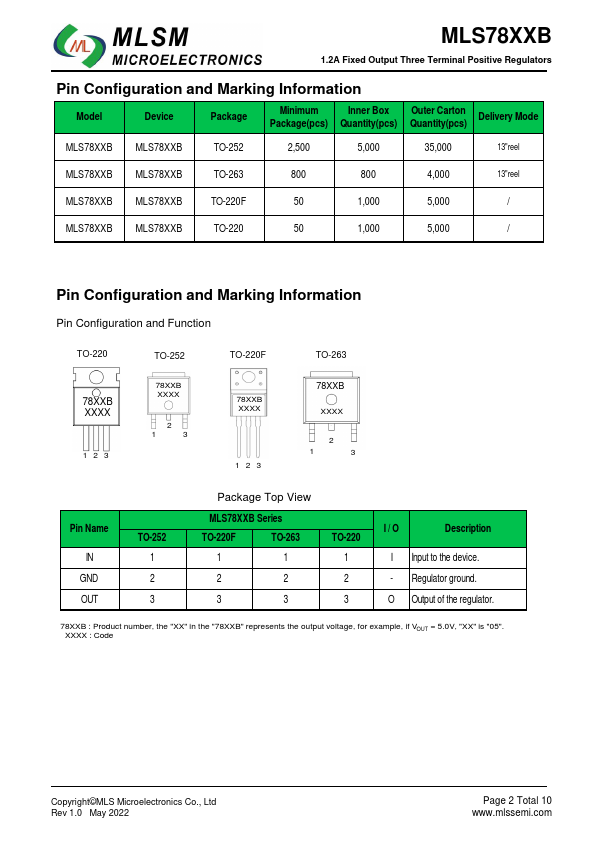

MLS7812B Description
O Output of the regulator. Product number, the "XX" in the "78XXB" represents the output voltage, for example, if VOUT = 5.0V, "XX" is "05". Code CSoppyrieghct©iMfiLcSaMticirooenlesctronics Co., Ltd Rev 1.0 May 2022 Page 2 Total 10 .mlssemi.

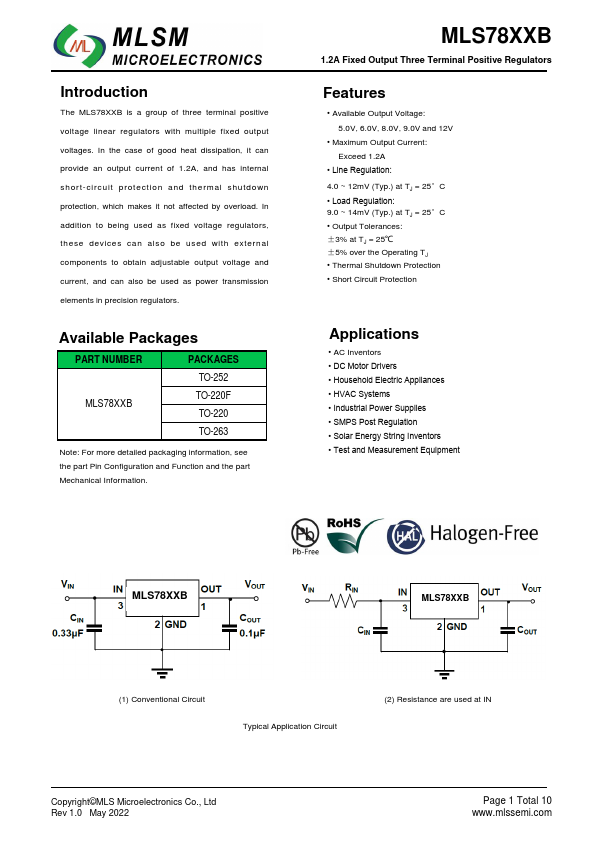

MLS7812B Key Features
- Available Output Voltage: 5.0V, 6.0V, 8.0V, 9.0V and S112VD2
- Maximum Output Current:D1 Exceed 1.2A
- Line Regulation: 4.0 ~ 12mV (Typ.) at TJ = 25°C
- Load Regulation: 9.0 ~ 14mV (Typ.) at TJ = 25°C
- Output Tolerances: ±3% at TJ = 25℃ ±5% over the Operating TJ
- Thermal Shutdown Protection
- Short Circuit Protection
