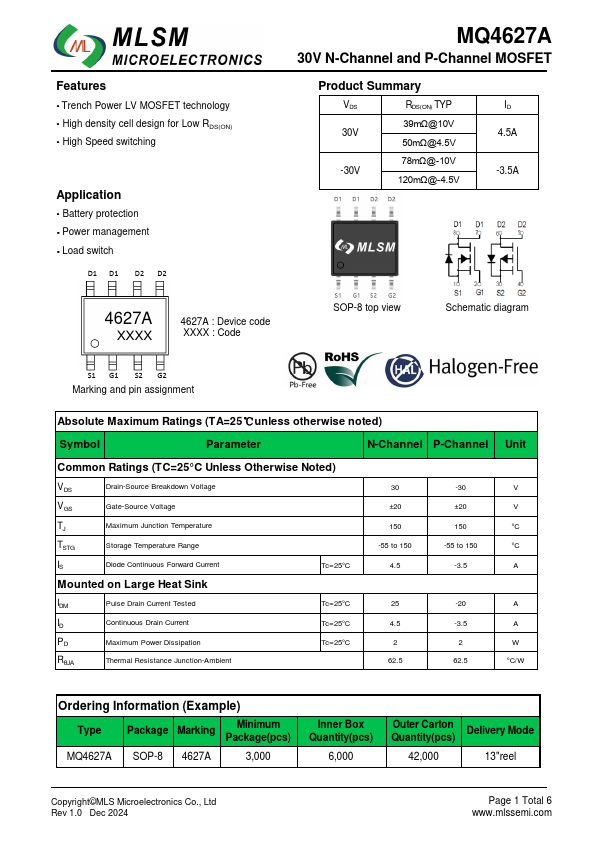

MQ4627A
Features
- Trench Power LV MOSFET technology
- High density cell design for Low RDS(ON)
- High Speed switching
Application
- Battery protection
- Power management
- Load switch
D1 D1 D2 D2
30V N-Channel and P-Channel MOSFET
Product Summary
RDS(ON) TYP
39mΩ@10V
30V
50mΩD@1 4S.15DV2
-30V
78mΩ@-10V 120mΩ@-4.5V
ID 4.5A -3.5A
4627A
XXXX
4627A : Device code XXXX : Code
SOP-8 top view
Schematic diagram
S1 G1 S2 G2
Marking and pin assignment
Absolute Maximum Ratings (TA=25℃unless otherwise noted)
Symbol
Parameter
N-Channel P-Channel mon Ratings (TC=25°C Unless Otherwise Noted)
Drain-Source Breakdown Voltage
Gate-Source Voltage
Maximum Junction Temperature
TSTG
Storage Temperature Range
Diode Continuous Forward...
