MLSM PXT2907A
PNP Transistor
| Part No. | PXT2907A |
|---|---|
| Datasheet | PXT2907A Download |
| Manufacturer |  MLSM |
| Description | PNP Transistor |
| Buy | Stock & Price |

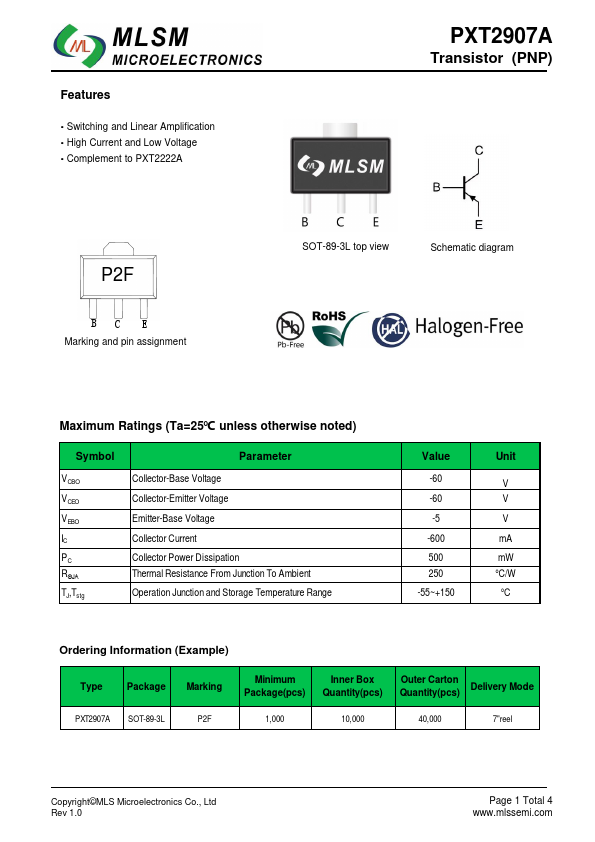

FEATURES
● Switching and Linear Amplification● High Current and Low Voltage
● Complement to PXT2222A PXT2907A Transistor (PNP) X:Rank P2F BC E Marking and pin assignment SOT-89-3L top view Schematic diagram
MAXIMUM RATINGS

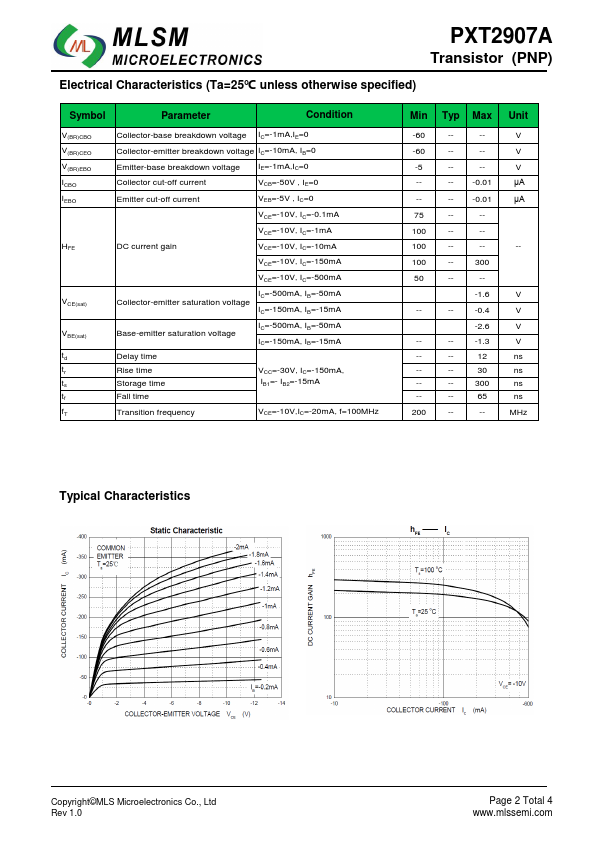

(Ta=25℃ unless otherwise noted) Symbol VCBO VCEO VEBO IC PC RΘJA TJ,Tstg Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction and Storage Temperature Range Value -60 -60 -5 -600 500 250 -55~+150 Unit V V V mA mW °C/W °C Ordering Information (Example) Type Package Marking Minimum Inner Box Outer Carton Package(pcs) Quantity(pcs) Quantity(pcs) Delivery Mode PXT2907A SOT-89-3L P2F 1,000 10,000 40,000 7"reel Copyright©MLS Microelectronics Co., Ltd ℃ Rev 1.0 Page 1 Total 4 PXT2907A Transistor (PNP)ELECTRICAL CHARACTERISTICS
(Ta=25℃ unless otherwise specified) Symbol Parameter Condition V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO HFE VCE(sat) V...
